P4T-500M18G-60-T-515-SFF-2W-IND Preliminary
Terminated SP4T Switch
Quantic PMI Model P4T-500M18G-60-T-515-SFF-2W-IND is a terminated, single pole, four throw switch that operates over the frequency range of 0.5 to 18 GHz that handles 2 W CW input power with port-to-port isolation of 60 dB with a low insertion loss of 6 dB while still offering a fast-switching speed of 200 ns. Supplied with SMA Female connectors in a housing measuring 1.25" x 1.25" x 0.4".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 4.5 dB Typ, 6 dB Max |
| Insertion Loss - Typ (dB): | 6 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 200 ns Max |
| Switching Speed - Typ: | 200 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 2 W CW Max |
| Power Supply: | +5 VDC & -15 VDC |
| Control Signal: | TTL Logic |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |

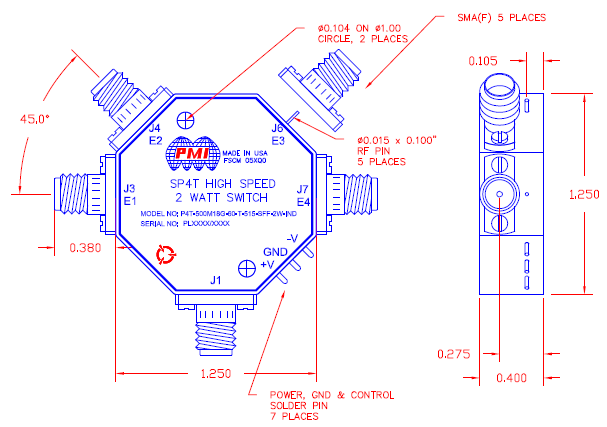

| Size: | Radial Package (1.25" Edge to Edge) x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
