P4T-500M18G-60-T-SFF-JW-MD15 Preliminary
SP4T Absorptive Switch

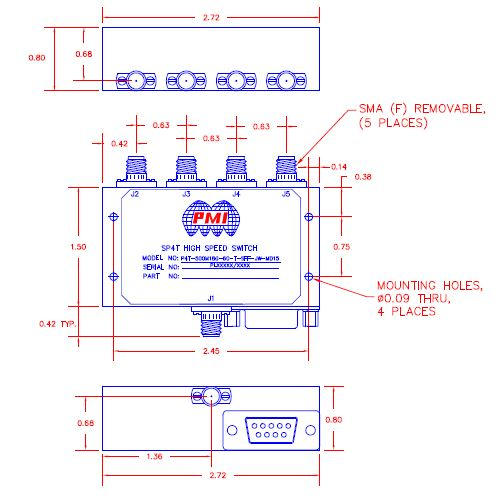

Quantic PMI Model P4T-500M18G-60-T-SFF-JW-MD15 is an absorptive, single pole, four throw pin diode switch that operates over the 0.5 to 18 GHz frequency range and incorporates a TTL compatible driver for easy system integration. Housing measures 2.72" x 1.5" x 0.8" with 9-pin micro-D connector for power/control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.75 dB Max |
| Isolation (dB): | 60 dB Min |
| Switching Speed: | 25 ns Max (Rise/Fall), 100 ns Max (Delay On/Off) |
| Rise/Fall Time: | 25 ns Max |
| Delay On/Off: | 100 ns Max |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 20 dBm CW Max |
| Power Supply: | +5 VDC @ 200 mA Max, -5 VDC @ 100 mA Max |
| Control Signal: | TTL Logic |
| Power & Control Connector: | 9 Pin Subminiature Micro-D |
| Connectors: | SMA Female |
| Size: | 2.72" x 1.50" x 0.80" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 ºC to +95 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 508.2 |
