P4T-500M18G-60-T-SFF-JW-OPT4G5G Preliminary
SP4T Reflective Switch

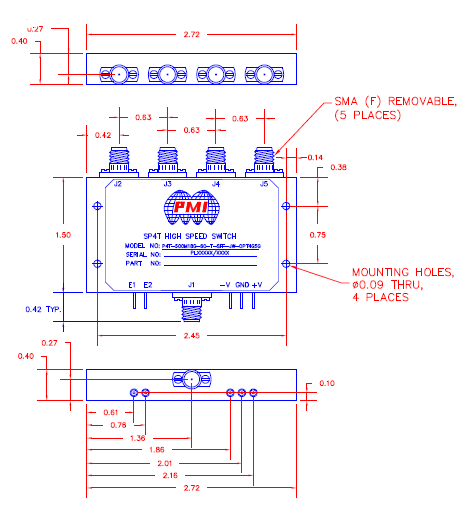

Quantic PMI Model P4T-500M18G-60-T-SFF-JW-OPT4G5G is an absorptive, single pole, four throw pin diode switch that operates over the 4 to 5 GHz frequency range and incorporates a TTL compatible driver for easy system integration. Housing measures 2.72" x 1.5" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 4 to 5 |
| Frequency Min (GHz): | 4 |
| Frequency Max (GHz): | 5 |
| Insertion Loss (dB): | 0.1 Max |
| Insertion Loss - Typ (dB): | 0.1 dB |
| Isolation (dB): | 80 dB Min |
| Isolation - Typ (dB): | 80 dB |
| Switching Speed: | 25 ns Max, 10 ns Typ (Rise/Fall), 100 ns Max, 30 ns Typ (Delay On/Off) |
| Switching Speed - Typ: | 100 ns |
| Rise/Fall Time: | 25 ns Max, 10 ns Typ |
| Delay On/Off: | 100 ns Max, 30ns Typ |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 20 dBm CW Max |
| Control Signal: | Two Line TTL |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 2.72" x 1.5" x 0.4" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54ºC to +95ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
