P4T-500M18G-70-R-SFF-SP Preliminary
SP4T Reflective Switch

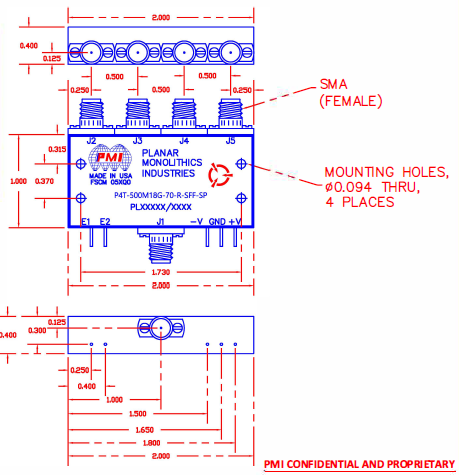

Quantic PMI Model P4T-500M18G-70-R-SFF-SP is a reflective, single pole, four throw pin diode switch that operates over the 0.5 to 18 GHz frequency range that incorporates a TTL compatible driver for easy system integration. Housing size is 2.0" x 1.5" x 0.4" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.5 dB Max |
| Insertion Loss - Typ (dB): | 3.5 dB Max |
| Isolation (dB): | 70 dB Min |
| Input Power: | 23 dBm CW Max |
| Power Supply: | +5 VDC @ 250 mA Max, -12 VDC @ 100 mA Max |
| Control Signal: | TTL Logic |
| Power & Control Connector: | Solder Pins |
| Size: | 2.0" x 1.0" x 0.4" |
| Finish: | Blue epoxy polimide coating IAW MIL-C-22750, Type I over epoxy polimide primer IAW MIL-P-23377, Type I, Class 1 or 3 |
| Export Classification (ECCN): | EAR99 |
