P4T-500M18G-80-T-515-SFF-2W-IND Active
SP4T Switch
Additional Documents
- Product Feature
- S-Parameters
- Test Report - 4/1/2024
- PL18884 - Unit Data
- PL22960 - Unit Data
- PL24027 - Unit Data
- PL27546 - Unit Data
- PL28089 - Unit Data
- PL28680 - Unit Data
- PL28644 - Unit Data
- PL30004 - Unit data
- PL30005 - Unit Data
- PL31702-3 - Unit Data
- PL31703 - Unit Data
- PL31704 - Unit Data
- PL33849 - Unit Data
- PL33850 - Unit Data
- PL31702 - Unit Data
- PL50188 - Unit Data

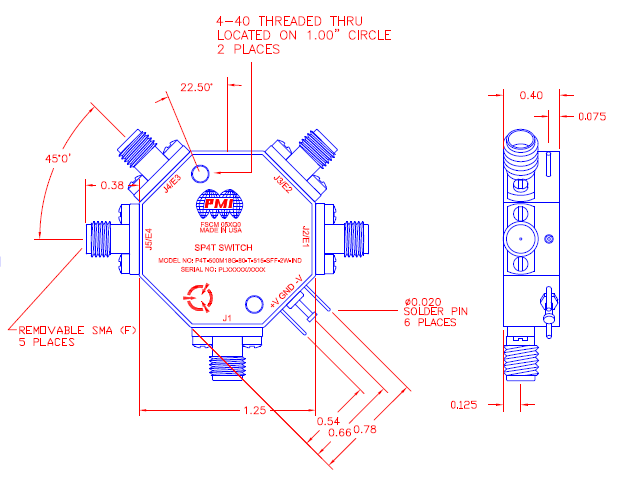

Quantic PMI Model P4T-500M18G-80-T-515-SFF-2W-IND is a Single Pole, Four Throw Swtich operating from 0.5 to 18 GHz that offers 80 dB minimum of isolation with a maximum insertion loss of 6 dB with a maximum switching speed of 200 ns and a maximum output power of 33 dBm CW. Housed in a radial package with a 1.25” diameter by 0.40” thick with remoavable SMA connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 4.5 dB Typ, 6 dB Max |
| Insertion Loss - Typ (dB): | 4.5 dB |
| Isolation (dB): | 80 dB Typ |
| Isolation - Typ (dB): | 80 dB |
| Switching Speed: | 200 ns Max |
| Switching Speed - Typ: | 200 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 33 dBm CW Max |
| Power Supply: | +5 VDC -15 VDC |
| Control Signal: | Individual TTL Control: "0" = Low Loss, "1" = Isolation |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - removable |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
| Shock: | MIL-STD-202G, Method 213B Cond. B |
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202G, Method 107G Cond. A |
