P4T-500M18G-80-T-SFF-DEC Preliminary
SP4T Absorptive Switch
Quantic PMI Model P4T-500M18G-80-T-SFF-DEC is a 0.5 to 18 GHz, single pole, four throw, absorptive switch. This switch offers 80 dB of port-to-port isolation and a maximum insertion loss of 3.75 dB and a switching speed of 25 ns with a 2-pin decoded TTL controller. The operating power is 20 dBm CW and it has a maximum VSWR of 2.0:1. Housing measures 2.72" x 1.5" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.75 dB Max |
| Insertion Loss - Typ (dB): | 3.5 dB |
| Isolation (dB): | 80 dB Typ |
| Isolation - Typ (dB): | 80 dB |
| Switching Speed: | 25 ns Max (50% TTL to 90% RF) |
| Switching Speed - Typ: | 25 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 20 dBm CW |
| Survival Power: | 23 dBm CW |
| Power Supply: | +5 VDC @ 200 mA Max, -5 VDC @ 100 mA Max |
| Control Signal: | 2 Bit Decoded TTL |
| Power & Control Connector: | Feedthru - Ø0.030 typ |
| Connectors: | SMA Female |

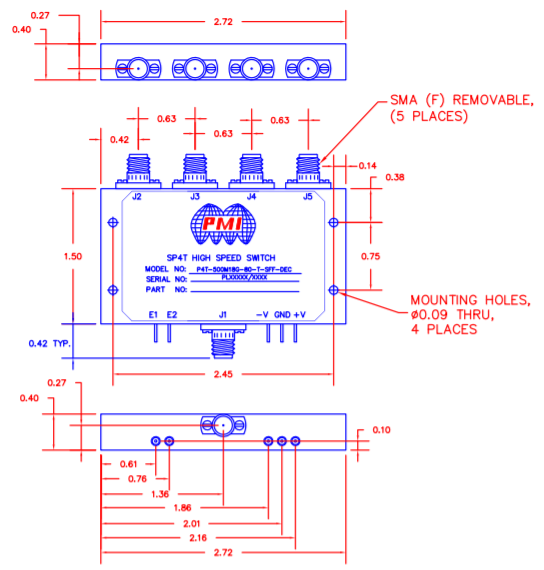

| Size: | 2.72" x 1.5" x 0.4" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
