P4T-500M18G-80-T-SFF-IND-1 Active
SP4T Absorptive PIN Diode Switch
Additional Documents
- Product Feature
- S-Parameters
- Test Report - 4/1/2024
- PL28188 - Unit Data
- PL28189 - Unit Data
- PL28190 - Unit Data
- PL28577 - Unit Data
- PL28578 - Unit Data
- PL30678-1 - Unit Data
- PL30678-2 - Unit Data
- PL32144 - Unit Data
- PL32145 - Unit Data
- PL32146 - Unit Data
- PL32146-1 - Unit Data
- PL32147 - Unit Data
- PL32147-1 - Unit Data
- PL32148 - Unit Data
- PL32148-1 - Unit Data
- PL32149 - Unit Data
- PL32149-1 - Unit Data
- PL32155 - Unit Data
- PL32155-1 - Unit Data
- PL32156 - Unit Data
- PL32156-1 - Unit Data
- PL32157 - Unit Data
- PL32157-1 - Unit Data
- PL32158 - Unit Data
- PL32159-1 - Unit Data
- PL32160 - Unit Data
- PL32185 - Unit Data
- PL32186 - Unit Data
- PL32235 - Unit Data
- PL32235-1 - Unit Dat
- PL32659 - Unit Data
- PL32660 - Unit Data
- PL32145 - Unit Data
- PL32147 - Unit Data
- PL32155 - Unit Data
- PL32185 - Unit Data
- PL34827 - Unit Data
- PL37178 - Unit Data
- PL40833 - Unit Data
- PL40834 - Unit Data
- PL40835 - Unit Data
- PL40836 - Unit Data
- PL40836-1 - Unit Data
- PL41278 - Unit Data
- PL50738 - Unit Data
- PL50739 - Unit Data
- PL50878 - Unit Data
- PL50879 - Unit Data
- PL50880 - Unit Data
- PL50881 - Unit Data
- PL50882 - Unit Data
- PL50883 - Unit Data
- PL50898 - Unit Data

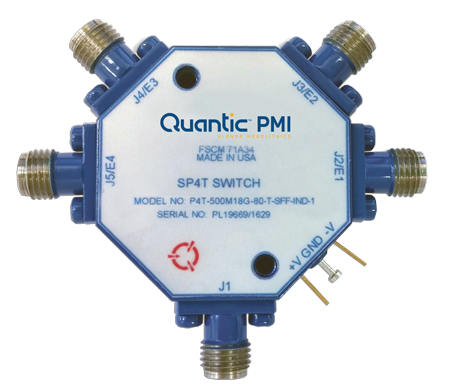

Quantic PMI Model P4T-500M18G-80-T-SFF-IND-1 is a SP4T, Absorptive PIN Diode Switch that operates over 0.5 to 18 GHz frequency range that offers 80 dB of isolation, insertion Loss is 3.75 dB Max, a switching speed (On/Off) of 25 ns and its operating RF input power is 20 dBm and a VSWR of 2:1. The switch is a Radial design with a 1.25” diameter by 0.40” thick with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.75 dB Max |
| Insertion Loss - Typ (dB): | 3.75 dB |
| Isolation (dB): | 80 dB Typ |
| Switching Speed: | 25 ns Typ (50% TTL to 10% / 90% RF) |
| Switching Speed - Typ: | 25 ns |
| VSWR In/Out: | 2.0:1 Max - Measured 1.89:1 |
| Input Power: | 20 dBm CW |
| Survival Power: | 23 dBm CW |
| Power Supply: | +5 VDC @ 200 mA Max |
| Control Signal: | Individual TTL Control, "0" = Low Loss "1" = Isolation |
| Power & Control Connector: | Feedthru - Ø0.02 Typ |
| Connectors: | SMA Female - removable |
| Size: | 1.25” (diameter) x 0.40” |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
