P4T-500M18G-80-T-SFF-IND-3 Preliminary
SP4T Absorptive Switch
Quantic PMI Model P4T-500M18G-80-T-SFF-IND-3 is a 0.5 to 18 GHz, single pole, four throw, absorptive switch. with a switch offers 80 dB of port-to-port isolation, and a maximum insertion loss of 3.75 dB that has a switching speed of 25 ns with individual TTL control. The operating power is 20 dBm CW and the VSWR is 2:1 maximum. Housing measures 1.25" x 1.25" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.75 dB Max |
| Isolation (dB): | 80 dB Min |
| Switching Speed: | 25 ns Typ (50% TTL to 10% / 90% RF) |
| Input Power: | 20 dBm CW |
| Survival Power: | 23 dBm CW |
| Power Supply: | +5 VDC @ 200 mA Max, -5 VDC @ 100 mA Max |
| Control Signal: | Individual TTL Control "0" = Low Loss & "1" = Isolation |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |

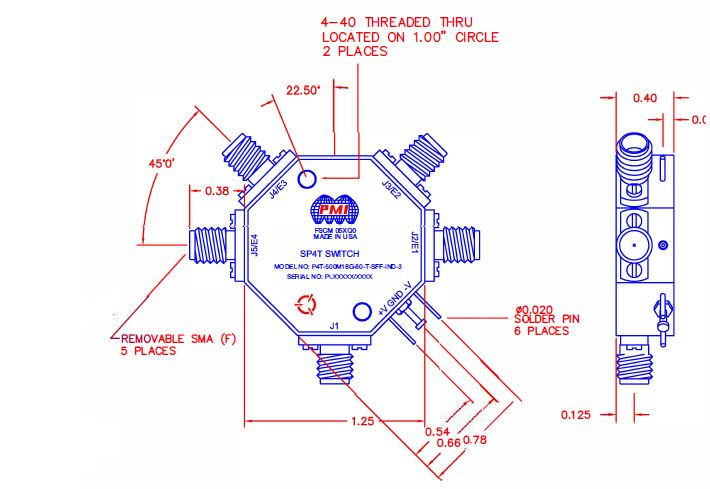

| Size: | 1.25" x 1.25" x 0.4" |
| Finish: | Blue epoxy polimide coating IAW MIL-C-22750, Type I over epoxy polimide primer IAW MIL-P-23377, Type I, Class 1 or 3 |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond B |
| Shock: | MIL-STD-202F, Method 213B Cond B |
| Vibration: | MIL-STD-202F, Method 204D Cond B |
| Altitude: | MIL-STD-202F, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
