P4T-500M2G-50-R-SFF-IND Preliminary
SP4T Reflective Switch
Quantic PMI Model P4T-500M2G-50-R-SFF-IND is a 0.5 to 2 GHz, single pole, four throw, reflective switch with low insertion loss, high isolation and with integrated TTL driver. Housing measures 1.5" x 1.5" x 0.75" and is supplied with SMA Female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 0.5 to 2 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 2 |
| Insertion Loss (dB): | 2.5 dB Max within 0.5 dB amplitude tracking for all output ports |
| Insertion Loss - Typ (dB): | 2.5 dB |
| Isolation (dB): | 50 dB Min |
| Isolation - Typ (dB): | 50 dB |
| Switching Speed: | 2 µs Max |
| Switching Speed - Typ: | 2us |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 20 dBm CW Max |
| Survival Power: | 1 W CW or 75 W Peak (1 µs PW) Max |
| Power Supply: | +5 VDC ± 5% @ 200 mA Max, -12 to -15 VDC @ 60mA Max |
| Control Signal: | Independent TTL Control, 3.2 mA sink current max at Logic |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Feamle |

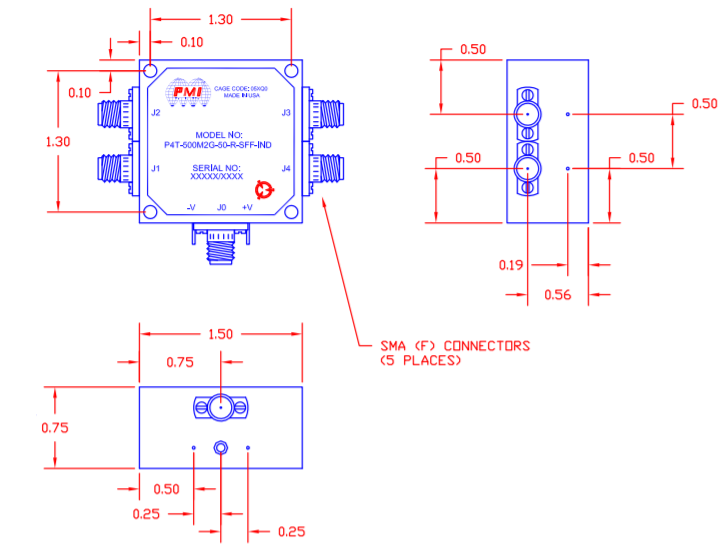

| Size: | 1.5" x 1.5" x 0.75" |
| Finish: | Painted Blue Mounting Surface Free of Paint |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202C, Method 103B Cond. B (96 HRS at 95%) |
| Shock: | MIL-STD-202C, Method 213B Cond. B (75G, 6msec) |
| Vibration: | MIL-STD-202C, Method 204A Cond. B |
| Temperature Cycle: | MIL-STD-202C, Method 102 Cond. A (5 Cycles) |
