P4T-500M4G-70-T-515-SFF-23DBM-IND-MVG Preliminary
SP4T Absorptive Switch

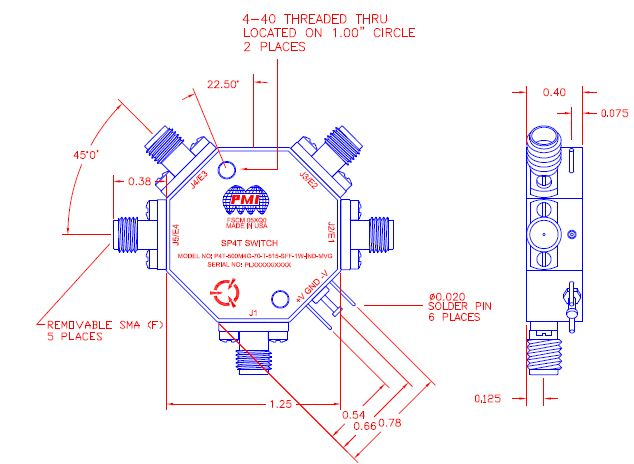

Quantic PMI Model P4T-500M4G-70-T-515-SFF-23DBM-IND-MVG is a single pole, four throw, absorptive switch that operates over the 0.5 to 4 GHz frequency range that features low insertion loss and high isolation and incorporates a TTL compatible driver for ease of system integration. Housing measures 1.25" x 1.25" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 4 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 4 |
| Insertion Loss (dB): | 2 dB Max |
| Isolation (dB): | 70 dB Min |
| Switching Speed: | 100 ns Max |
| Power Supply: | +5 VDC & -15 VDC |
| Operating Power: | 23 dBm CW Max - Hot Switching |
| Control Logic: | Individual TTL Control "0" = Low Loss and "1" = Isolation |
| VSWR (On/Off): | 1.2:1 Max |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - removable |
| Size: | 1.25" x 1.25" x 0.4" |
| Finish: | Epoxy Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +125 °C |
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
| Shock: | MIL-STD-202G, Method 213B Cond. B |
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202G, Method 107G Cond. A |
