P4T-500M6G-80-T-SFF Preliminary

SP4T Absorptive Switch

P4T-500M6G-80-T-SFF
Product Feature

Quantic PMI Model P4T-500M6G-80-T-SFF is a 0.5 to 6 GHz, single pole, four throw, absorptive switch which offers 80 dB of port-to-port isolation and a maximum insertion loss of 3 dB with a switching speed of 25 ns and is independently TTL controlled. The operating power is 20 dBm CW ad the VSWR is 2.0:1. Housing size is 2.0" x 1.0" x 0.4" and is outfitted with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Configuration: SP4T
Reflective / Absorptive: Absorptive
Frequency (GHz): 0.5 to 6
Frequency Min (GHz): 0.5
Frequency Max (GHz): 6
Insertion Loss (dB): 3 dB Max
Insertion Loss - Typ (dB): 3 dB
Isolation (dB): 80 dB Min
Isolation - Typ (dB): 80 dB
Switching Speed: 25 ns Typ (50% TTL to 10% / 90% RF)
Switching Speed - Typ: 25 ns
VSWR In/Out: 2.0:1 Max
Input Power: 20 dBm CW
Survival Power: 23 dBm CW
Power Supply: +12 VDC @ 100 mA,
-12 VDC @ 125mA,
Voltage Regulation & Reverse Bias Protection Included
Control Signal: 4 Line Independent,
Logic "0" = Insertion Loss,
Logic "1" = Isolation
Power & Control Connector: Feedthru - Ø0.030 Typ
Connectors: SMA Female

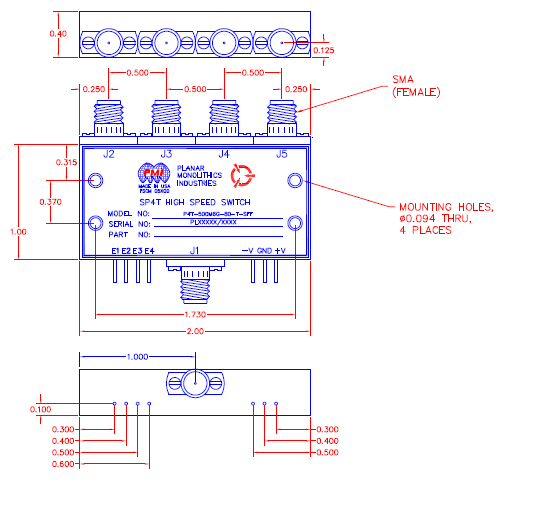

Size: 2.0" x 1.0" x 0.4"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Non-Operating Temperature: -55 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
