P4T-50M1G-60-R-1W-SFF
Preliminary
SP4T Reflective Switch

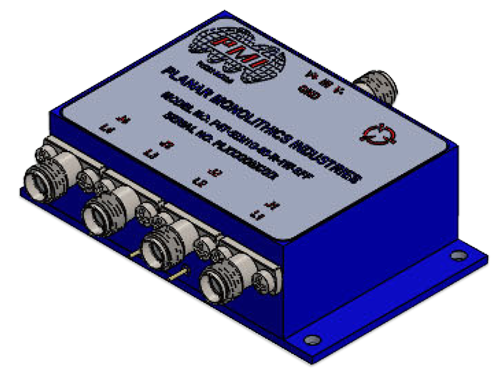

Quantic PMI Model P4T-50M1G-60-R-1W-SFF is a reflective 4 way switch covering the 0.05 to 1 GHz frequency range that incorporates a TTL compatible driver for easy system integration. Housing size is 2.5" x 1.5" x 0.75" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SP4T |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Frequency (GHz): | 0.05 to 1 |
|---|
| Frequency Min (GHz): | 0.05 |
|---|
| Frequency Max (GHz): | 1 |
|---|
| Insertion Loss (dB): | 1 dB Max |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Switching Speed: | 50 ns Max (10% RF to 90% RF),
50 ns Max (90% RF to 10% RF),
200 ns Max (50% TTL to 90% RF),
150 ns Max 50% TTL to 10% RF) |
|---|
| Power Supply: | +5 VDC @ 225 mA Max,
-15 VDC @ 75 mA Max |
|---|
| Control: | TTL "0" = Insertion Loss
TTL "1" = Isolation |
|---|
| RF Input Power: | 30 dBm Max (Survival) |
|---|
| VSWR (On/Off): | 1.8:1 Max (ON) |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female |
|---|

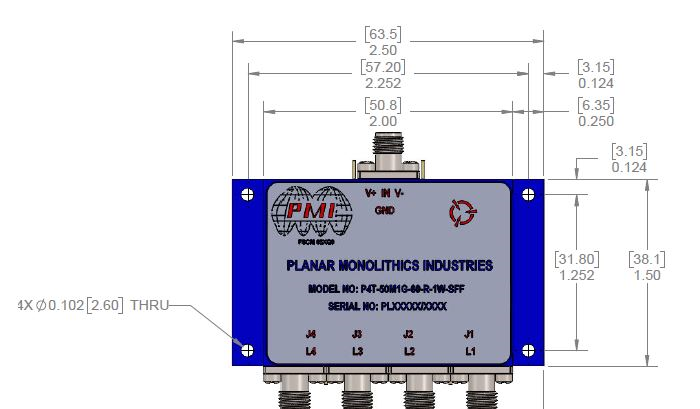

| Size: | 2.5" X 1.5" X 0.75" |
|---|
| Weight: | 100 g Max |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +70 °C |
|---|
| Non-Operating Temperature: | -40 °C to +70 °C |
|---|
| Humidity: | 95% RH (70°C) Max |
|---|
| Vibration: | 16Hz, 3mm/3G |
|---|
| Altitude: | 0-7000ft (0 TO 2134 m) |
|---|
