P4T-50M40G-55-T-292FF-LV Preliminary
SP4T Reflective Switch
PMI Model P4T-50M40G-55-T-292FF-LV is a 0.05 to 40 GHz, single pole, four throw, absorptive switch that offers 55 dB of port-to-port isolation and an insertion loss of 9.5 dB with a switching speed of 15 ns and is independently TTL controlled. The survival power is 20 dBm CW and the VSWR of 2.5:1. Housing size is 2.0" x 1.5" x 0.4" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.05 to 40 |
| Frequency Min (GHz): | 0.05 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 9.5 dB Typ |
| Insertion Loss - Typ (dB): | 9.5 dB |
| Isolation (dB): | 55 dB Typ, 40 dB Min |
| Isolation - Typ (dB): | 55 dB |
| Switching Speed: | 5 ns Typ |
| Switching Speed - Typ: | 5 ns |
| Rise/Fall Time: | 5 ns Typ (10% to 90% RF & 90% to 10% RF) |
| Delay On/Off: | 15 ns Typ (50% TTL to 10%/90% RF) |
| VSWR In/Out: | 2.5:1 Max |
| P1dB: | 14 dBm Typ |
| Survival Power: | 20 dBm CW Max |
| Power Supply: | +12 to +15VDC @ 150 mA Max, -12 to -15 VDC @ 150 mA Max |
| Control Signal: | 4 Line Independent, Logic "0" = Insertion Loss, Logic "1" = Isolation |
| Power & Control Connector: | Feedthru - Ø0.03 Typ |
| Connectors: | 2.92mm Female |

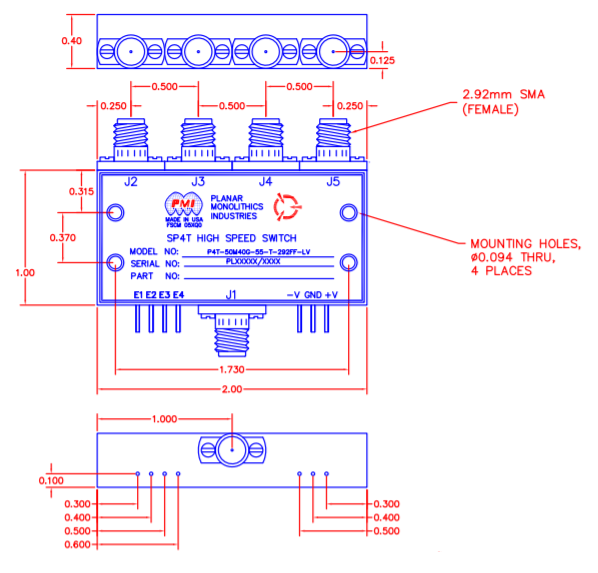

| Size: | 2.0" x 1.0" x 0.4" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
