P4T-50M40G-55-T-515-292FF Preliminary
SP4T Absorptive Switch
Quantic PMI Model P4T-50M40G-55-T-515-292FF is a 0.05 to 40 GHz, single pole four throw, absorptive switch which offers 55 dB of port-to-port isolation and a maximum insertion loss of 8 dB with a switching speed of 100 ns and is independently TTL controlled. The operating power is 20 dBm CW and the typical VSWR is 2.0:1. Housing size is 2.0" x 1.0" x 0.4" and is outfitted with 2.92mm female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.05 to 40 |
| Frequency Min (GHz): | 0.05 |
| Frequency Max (GHz): | 40 |
| Insertion Loss (dB): | 8 dB Max |
| Insertion Loss - Typ (dB): | 8 dB |
| Isolation (dB): | 55 dB Min |
| Isolation - Typ (dB): | 55 dB |
| Switching Speed: | 85 ns Typ, 100 ns Max (50% TTL to 10% / 90% RF) |
| Switching Speed - Typ: | 85 ns |
| VSWR In/Out: | 2.5:1 Max |
| Input Power: | 20 dBm CW |
| Survival Power: | 0.5 W CW, 5 W Peak, 1 µs |
| RFI Leakage: | SMA & Pins = <-100 dB Per MIL-C-39012 |
| Power Supply: | +5 VDC @ 150 mA, -15 VDC @ 150 mA |
| Control Signal: | 4 Line Independent, Logic "0" = Insertion Loss, Logic "1" = Isolation |
| Power & Control Connector: | Solder Pins - Ø0.030 Typ |
| Connectors: | 2.92mm Female for low leakage |

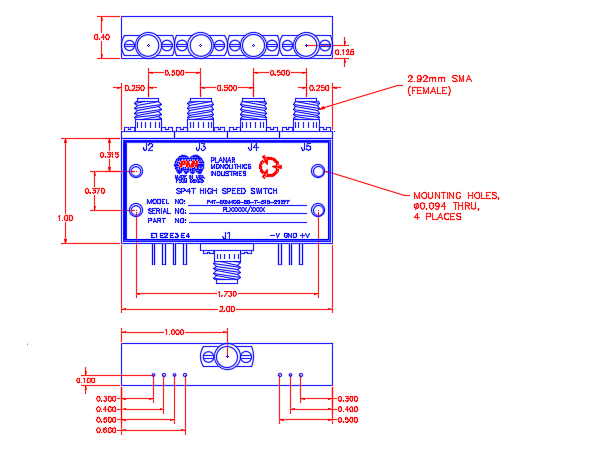

| Size: | 2.0" x 1.0" x 0.4" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
