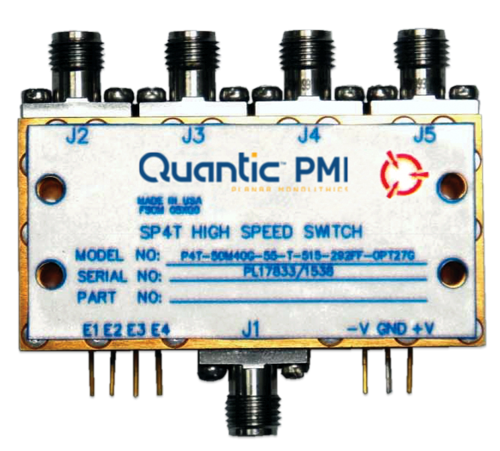

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP4T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.05 to 27 |
|---|
| Frequency Min (GHz): | 0.05 |
|---|
| Frequency Max (GHz): | 27 |
|---|
| Insertion Loss (dB): | 8 dB Max |
|---|
| Insertion Loss - Typ (dB): | 8 dB |
|---|
| Isolation (dB): | 55 dB Min |
|---|
| Isolation - Typ (dB): | 55 dB |
|---|
| Switching Speed: | 85 ns Typ, 100 ns Max (50% TTL to 10% / 90% RF) |
|---|
| Switching Speed - Typ: | 85 ns |
|---|
| VSWR In/Out: | 2.5:1 Max - Measured 2.2:1 |
|---|
| Input Power: | 20 dBm CW |
|---|
| Survival Power: | 0.5 W CW, 5 W Peak, 1 µs |
|---|
| RFI Leakage: | SMA & Pins = <-100 dB Per MIL-C-39012 |
|---|
| Power Supply: | +5 VDC @ 150 mA - Measured 65 mA,
-15 VDC @ 150 mA - Measured 150 mA |
|---|
| Control Signal: | 4 Line Independent, Logic "0" = Insertion Loss, Logic "1" = Isolation |
|---|
| Power & Control Connector: | Feedthru - Ø0.03 Typ |
|---|
| Connectors: | 2.92mm Female for low leakage |
|---|
| Size: | 2.0" x 1.0" x 0.4" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -55 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond A |
|---|
