P4T-60M20G-100-T-SFF Active
SP4T Absorptive Switch

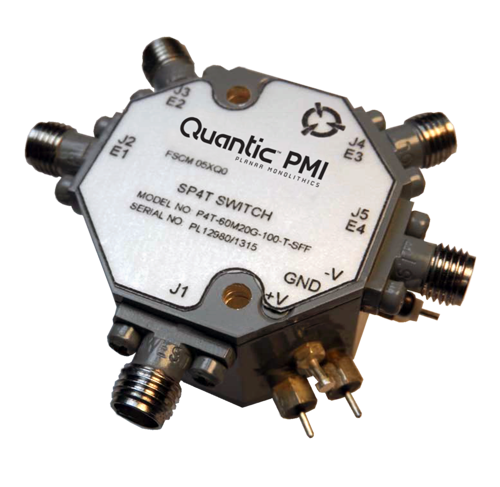

Quantic PMI Model P4T-60M20G-100-T-SFF is a Solid-State, Single-Pole Four Throw switch that operates from 0.06 to 20 GHz, designed to offer ultra-high isolation of 100 dB while maintaining a low insertion loss of 5.5 dB with a switching speed of 300 ns and offers phase tracking of 2° per °C. Operating input power is 20 dBm with a survival rating of 30 dBm. DC supply required is +5 VDC at 105 mA and -12 VDC at 50 mA. Housing measured 1.25" x 1.25" x 0.7" with SMA Female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.06 to 20 |
| Frequency Min (GHz): | 0.06 |
| Frequency Max (GHz): | 20 |
| Insertion Loss (dB): | 5.5 dB Max |
| Insertion Loss - Typ (dB): | 5.5 dB |
| Isolation (dB): | 100 dB Min, 110 dB Typ |
| Isolation - Typ (dB): | 110 dB |
| Switching Speed: | 300 ns Max, 50 ns Typ (10% to 90% RF) |
| Switching Speed - Typ: | 300 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 20 dBm Max |
| Power Supply: | +5 VDC @ 200 mA (105mA Typ), -12 VDC @ 100 mA (50 mA Typ) |
| Control Signal: | TTL Logic "0" = ON, "1" = OFF |
| Power & Control Connector: | FeedThrus |
| Connectors: | SMA Female - removable |
| Features: | Low Insertion Loss, Ultra-High isolation, Fast Switching Speed, Small Size |
| Size: | 1.25" x 1.25" x 0.70" - Radial |
| Finish: | Painted Gray |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | 0 ºC to +55 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
| Shock: | MIL-STD-202G, Method 213B Cond. B |
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202G, Method 107D Cond. A |
