P4T-60M20G100-T-SFF-OPT45M6G-80ISO Active
SP4T Absorptive Switch

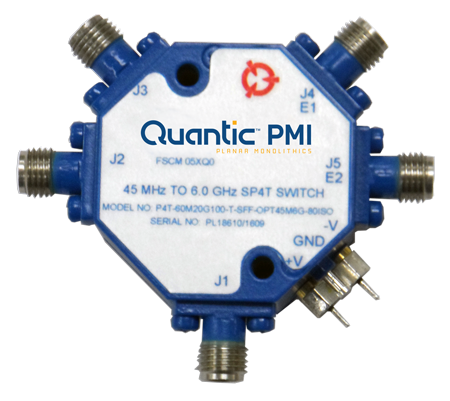

Quantic PMI Model P4T-60M20G100-T-SFF-OPT45M6G-80ISO is a Single Pole Four Throw Absorptive Switch that operates over the frequency range of 45 MHz to 6 GHz with over 80 dB of isolation with a switching speed of <50 ns and operates on +5 & -12 VDC. Housing measures 1.25" x 1.25" x 0.7" with field removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.045 to 6 |
| Frequency Min (GHz): | 0.045 |
| Frequency Max (GHz): | 6 |
| Insertion Loss (dB): | 2.5 dB Typ |
| Insertion Loss - Typ (dB): | 2.5 dB |
| Isolation (dB): | 80 dB Min |
| Isolation - Typ (dB): | 80 dB |
| Switching Speed: | 50 ns Typ (50% TTL to 10% / 90% RF) |
| Switching Speed - Typ: | 50 ns |
| VSWR In/Out: | 2.0:1 Max - Measured 1.6:1 |
| Input Power: | 20 dBm Max |
| Survival Power: | 30 dBm (1 W) |
| Power Supply: | +5 VDC @ 200 mA Max - Measured 109 mA, -12 VDC @ 100 mA Max - Measured 46 mA |
| Control Signal: | TTL Logic "0" = On, "1" = Off |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - removable |
| Size: | 1.25" x 1.25" x 0.7" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202G, Method 103B Cond. B |
| Shock: | MIL-STD-202G, Method 213B Cond. B |
| Vibration: | MIL-STD-202G, Method 204D Cond. B |
| Altitude: | MIL-STD-202G, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202G, Method 107G Cond. A |
