P4T-6G12G-70-R-SFF * Active
Single Pole Four Throw Switch
Additional Documents

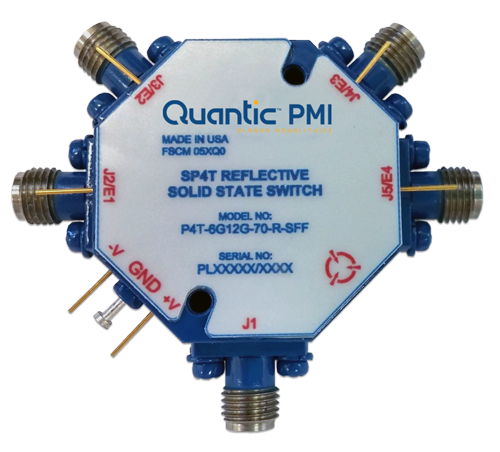

Quantic PMI Model P4T-6G12G-70-R-SFF is a Reflective, High Speed, Single Pole Four Throw Switch capable of switching within 50 ns typical with a frequency range of 6 to 12 GHz and has 70 dB isolation. Housing measures 1.25" x 1.25" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 6 to 12 |
| Frequency Min (GHz): | 6 |
| Frequency Max (GHz): | 12 |
| Insertion Loss (dB): | 2.5 dB Typ |
| Insertion Loss - Typ (dB): | 2.5 dB |
| Isolation (dB): | 70 dB Min |
| Isolation - Typ (dB): | 70 dB |
| Switching Speed: | 50 ns Typ |
| Switching Speed - Typ: | 50 ns |
| VSWR In/Out: | 1.5:1 Typ - Measured 1.39:1 |
| Input Power: | 20 dBm Max |
| Survival Power: | 30 dBm Max |
| Impedance: | 50 Ohm |
| Power Supply: | +5 VDC, 200 mA Typ - Measured 225 mA, -15 VDC, 75 mA Typ - Measured 31 mA |
| Control Signal: | TTL Logic "0" = Low Loss TTL Logic "1" = Isolation E1 Controls J1 to J2 E2 Controls J1 to J3 E3 Controls J1 to J4 E4 Controls J1 to J5 |
| Power & Control Connector: | Solder PIns |
| Connectors: | SMA Female |
| Size: | 1.25" x 1.25" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
