P4T-6G18G-27-T-SFF Active
SP4T Absorptive Switch

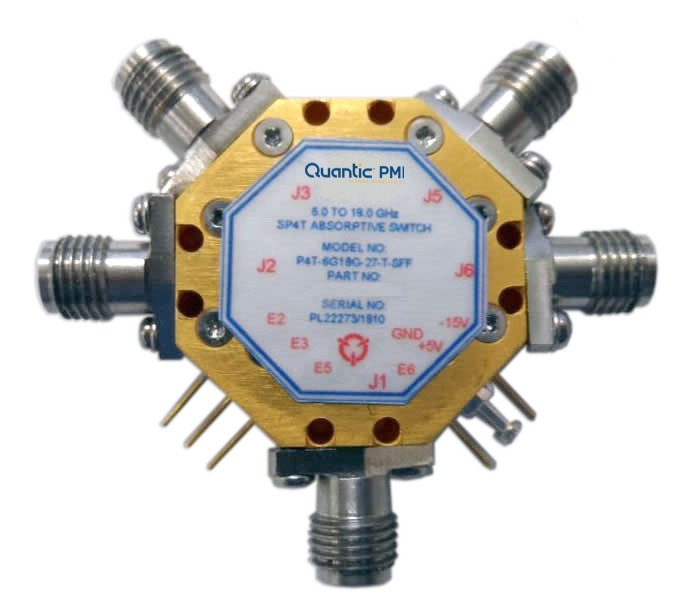

Quantic PMI Model P4T-6G18G-27-T-SFF is a single pole, four throw, absorptive switch operating over the 6 to 18 GHz frequency range. This model offers a minimum of 27 dB isolation, while maintaining a maximum insertion loss of 4.5 dB and a maximum VSWR of 2.3:1. Housing measures 0.996" x 0.996" x 0.366" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 6 to 18 |
| Frequency Min (GHz): | 6 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 2.5 dB Max (6 to 8 GHz), 4.8 dB Max (12.4 to 18 GHz) |
| Insertion Loss - Typ (dB): | 4.28 dB |
| Isolation (dB): | 45 dB Min (6 to 8 GHz), 27 dB Min (8 to 18 GHz) |
| Isolation - Typ (dB): | 66 dB |
| Switching Speed: | 500 ns Max (50% TTL to 90% / 10% RF Voltage) |
| Switching Speed - Typ: | 500 ns |
| VSWR In/Out: | 2.3:1 Max (6 to 12.4 GHz), 2.0:1 Max (12.4 to 18 GHz) |
| Operating Peak Input Power: | 10 W Peak, 75 W Peak |
| Survival Power: | 1 W Average |
| Impedance: | 50 Ohm |
| Power Supply: | +5 VDC ± 5% @ 100 mA Max, -15 VDC ± 5% @ 60 mA Max |
| Control Signal: | Schottky TTL, One Unit Load |
| Power & Control Connector: | Solder Terminals |
| Connectors: | SMA Female |
| Size: | 0.996" x 0.996" x 0.366" |
| Weight: | 45 g (1.59 oz) Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -25 ºC to +85 ºC |
| Non-Operating Temperature: | -30 ºC to +125 ºC |
| Humidity: | 0-100% Relative Humidity |
| Shock: | 15G, 11 ms |
| Vibration: | Double Amplitude: 10 mm @ 2 to 5 Hz, Double Amplitude: 5 mm @ 5 to 10 Hz |
| Altitude: | 50, 000 Feet |
