P4T-7G18G-50-R-SFF Preliminary
SP4T Reflective Switch
Quantic PMI Model P4T-7G18G-50-R-SFF is a single pole, four throw reflective switch operating over the 7 to 18 GHz, frequency range that offers a minimum of 50 dB isolation while maintaining a maximum insertion loss of 3.7 dB and a maximum VSWR of 2.0:1. The compact housing measures 0.996" x 0.996" x 0.366" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 7 to 18 |
| Frequency Min (GHz): | 7 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 2.5 dB Max (7 to 8 GHz), 3.7 dB Max (12.4 to 18 GHz) |
| Insertion Loss - Typ (dB): | 3.7 dB |
| Isolation (dB): | 55 dB Min (7 to 8 GHz), 50 dB Min (12.4 to 18 GHz) |
| Isolation - Typ (dB): | 55 dB |
| Switching Speed: | 80 ns Max (On/Off), 30 ns Max (On/Off Time) |
| Switching Speed - Typ: | 80 / 30 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 0.7 W CW Max (Hot Switching) |
| Power Supply: | +5 VDC ±5% @ 200 mA Max, -12 to -15 VDC ±5% @ 100 mA Max |
| Control Signal: | TTL Logic |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |

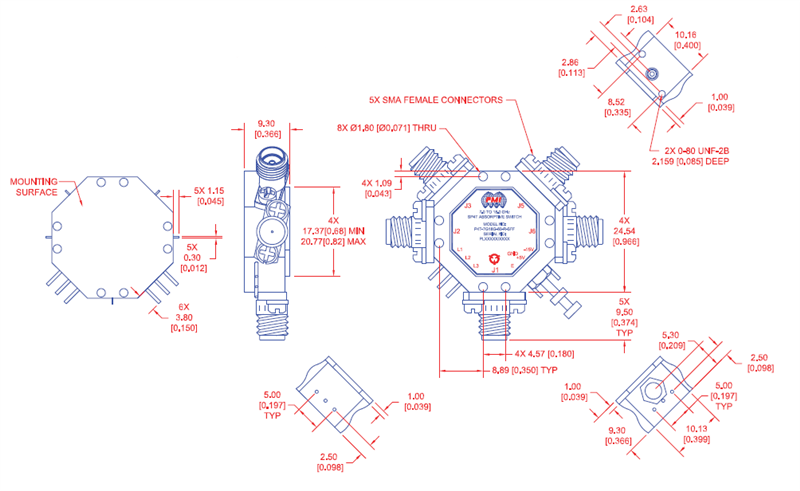

| Size: | 0.996" x 0.996" x 0.366" |
| Weight: | 45 g [1.59 oz] |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
