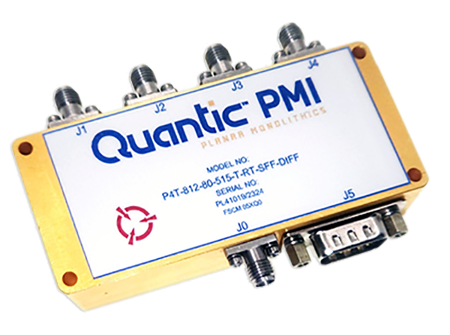

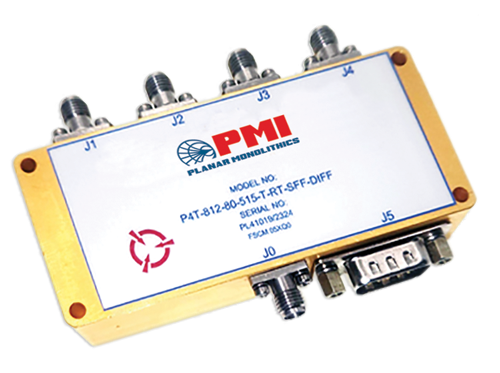

P4T-812-80-515-T-RT-SFF-DIFF Active

SP4T Absorptive Switch

P4T-812-80-515-T-RT-SFF-DIFF
Product Feature

Quantic PMI Model P4T-812-80-515-T-RT-SFF-DIFF is a single pole four throw absorptive switch that operates in the 8 to 12 GHz frequency range optimized for 10.27 ± 1 GHz with a maximum insertion loss of 4.0 dB: minimum 80 dB isolation over the optimized frequency range with a switching speed of 50 ns maximum.  This model uses EIA-422/485 compatible differential control via a 15-pn high density D-Sub Male connector and has field replaceable SMA female connectors.   Package size is 3.50" x 1.50" x 0.70".

Product Specifications

General Parameters:
Status: Active
Configuration: SP4T
Reflective / Absorptive: Absorptive
Frequency (GHz): 8 to 12, 10.27 ± 1 Optimized
Frequency Min (GHz): 8
Frequency Max (GHz): 12
Insertion Loss (dB): 2.5 dB Max (10.27 ± 1 GHz),
3 dB Max (8 to 12 GHz)
Isolation (dB): 80 dB Min (10.27 ± 1 GHz),
70 dB Min (8 to 12 GHz)
Switching Speed: 50 ns Max (Measure from 50% Strobe)
VSWR In/Out: 1.3:1 Max (10.27 ± 1 GHz),
1.5:1 Max (8 to 12 GHz)
Survival Power: 30 dBm CW Max
Power Supply: +5 VDC @ 200 mA Max (Reverse Protection)
-15 VDC @ 150 mA Max (Reverse Protection)
Operating Power: -20 to 20 dBm (0.078 dB Amplitude Change Max, 0.351° Phase Change Max)
Control Logic: TTL
Power & Control Connector: 15-Pin High Density D-Sub Male
Connectors: SMA Female - Field Removable
Size: 3.50" x 1.50" x 0.70"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: +10 °C TO +30 °C
Non-Operating Temperature: -40 °C to +85 °C
