| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency: | 8.0 to 12.0 GHz |
|---|
| Frequency Min: | 8 GHz |
|---|
| Frequency Max: | 12 GHz |
|---|
| Insertion Loss (Typ): | 2.2 dB |
|---|
| Isolation (Typ): | 60 dB |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Switching Speed (Typ): | 50 nsec |
|---|

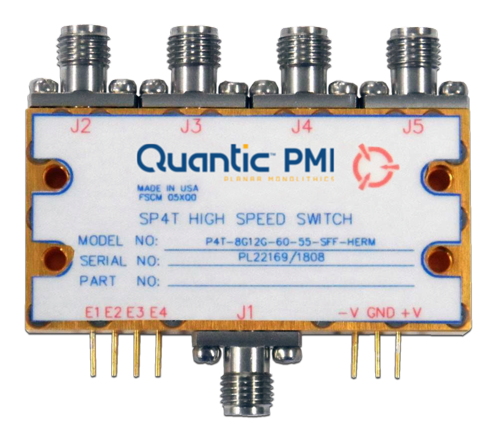

| Configuration: | SP4T |
|---|
| Isolation: | 60 dB min - Measured 83 dB |
|---|
| Insertion Loss: | 2.2 dB typ - Measured 2.2 dB |
|---|
| VSWR In/Out: | 1.5:1 max - Measured 1.4:1 |
|---|
| Input Power: | +24 dBm CW max - Measured +24 dBm CW |
|---|
| Switching Speed: | 50 ns max - Measured 29 ns 50% TTL to 10% / 90% RF |
|---|
| Impedance: | 50 OHMS |
|---|
| Control Signal: | 4 Line Independent, Logic "0" = Insertion Loss / (1.6 mA max Sink @ 0.4 V), Logic "1" = Isolation / (40 uA max Source @ 2.4 V) |
|---|
| Power Supply: | +5 VDC @ 120 mA max - Measured 67 mA -5 VDC @ 75 mA max - Measured 75 mA |
|---|
| Connectors: | SMA(F) - Passive Stainless Steel |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Size: | 2.0" x 1.0" x 0.4" |
|---|
| Finish: | Gold Plated |
|---|
| Sealing: | Hermetic Sealed |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 to +85 ºC |
|---|
| Non-Operating Temperature: | -65ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. C |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. G |
|---|
| Salt Fog: | MIL-STD-202F, Method 101D+EST Cond. B |
|---|
| Fungus: | MIL-STD-810F, Method 508.5 |
|---|
