P4T-8G12G-60-T-SFF-KW Active
SP4T Absorptive Switch

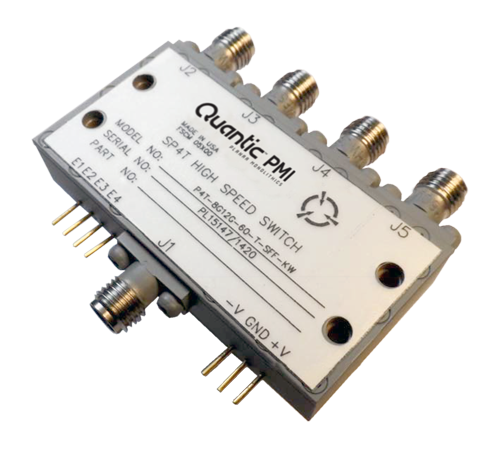

Quantic PMI Model P4T-8G12G-60-T-SFF-KW is an 8 to 12 GHz, single pole, four throw, absorptive switch that offers 90 dB typically of port-to-port isolation and a typical insertion loss of 2 dB and has a typical switching speed of 20 ns and is independently TTL controlled. Operating power is 20 dBm CW and the VSWR is 2.0:1 maximum. Supplied in a housing measuring 2.0” x 1.0” x 0.4” with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 8 to 12 |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 12 |
| Insertion Loss (dB): | 1.5 dB goal, 0.1 Typ |
| Insertion Loss - Typ (dB): | 2 dB |
| Isolation (dB): | 50 dB Min |
| Isolation - Typ (dB): | 50 dB |
| Switching Speed: | 20 ns (Rise/Fall), 50 ns (Delay On/Off) |
| Switching Speed - Typ: | 50 ns |
| Rise/Fall Time: | 20 ns |
| Delay On/Off: | 50 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 20 dBm CW |
| Power Supply: | +5 VDC @ 175 mA - measured @ 64mA, -12 VDC @ 100 mA - measured @ 67mA |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - Passive Stainless Steel |
| Size: | 2.0" x 1.0" x 0.4" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Salt Fog: | MIL-STD-202F, Method 101D+EST Cond B |
| Fungus: | MIL-STD-810F, Method508.5 |
