P4T-911-65-T-LVPECL-SFF-PM Preliminary
SP4T Absorptive Switch

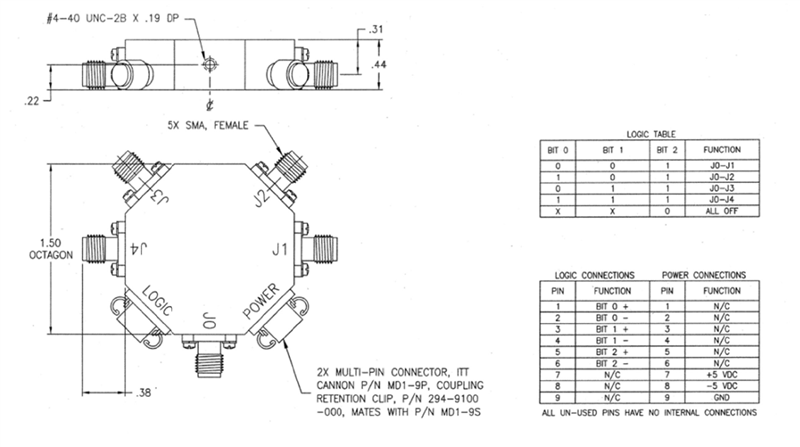

Quantic PMI Model P4T-911-65-T-LVPECL-SFF-PM is a single pole, four throw absorptive switch designed to operate over the 9 to 11 GHz frequency range that is designed to maintain low insertion loss, high isolation, fast switching speed, and 20 dBm CW power handling. Housing measures 1.5" x 1.5" x 0.44" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP4T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 9 to 11 |
| Frequency Min (GHz): | 9 |
| Frequency Max (GHz): | 11 |
| Insertion Loss (dB): | 2.5 dB Max |
| Isolation (dB): | 65 dB Min |
| Switching Speed: | 100 ns Max (Rate 10 MHz Min) |
| Phase Matching: | ±5° (Port to Port) |
| VSWR In/Out: | ON/OFF (1.288:1 Max Output Ports / 1.433:1 Max Common Port OFF) |
| Input Power: | 1 W CW Max, 2 W Peak Max (Operating) |
| Survival Power: | 25 dBm Max |
| Power Supply: | +5 VDC @ 100 mA Nom -5 VDC @ 20 mA Nom |
| Control: | TTL |
| Control Signal: | 3 Bits |
| Power & Control Connector: | 2X MD1-9P, Coupling retention clip |
| Connectors: | SMA Female |
| Size: | 1.5" x 1.5" x 0.44" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 1070 COND. A |
