P4T-9D25G-60-R-SFF-5W Active
SP4T Reflective Switch
Additional Documents

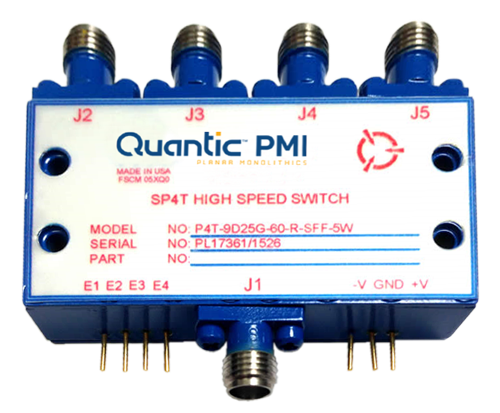

Quantic PMI Model P4T-9D25G-60-R-SFF-5W is a Solid State, High Speed, Single Pole Four Throw Reflective Switch capable of switching within 50 ns with a frequency range of 9.25 GHz (±0.03 GHz) and offers over 60 dB of isolation. This switch can handle input RF Power levels of 37 dBm peak and 33 dBm CW. Housing measures 2.0" x 1.0" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP4T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 9.25 ± 0.03 |
| Frequency Min (GHz): | 9.22 |
| Frequency Max (GHz): | 9.28 |
| Insertion Loss (dB): | 1.5 dB Goal, 2 dB Max |
| Insertion Loss - Typ (dB): | 1.5 dB |
| Isolation (dB): | 40 dB Min, 60 dB Goal |
| Isolation - Typ (dB): | 40 dB |
| Switching Speed: | 50 ns Max |
| Switching Speed - Typ: | 50 ns |
| VSWR In/Out: | 2.0:1 Max - Measured 1.87:1 |
| Input Power: | 33 dBm CW Max |
| Operating Peak Input Power: | 37 dBm Max |
| Power Supply: | +5 VDC @ 200 mA Max - Measured 101 mA -12 VDC @ 75 mA Max - Measured 0 mA |
| Control Signal: | 4 Line Independent, Logic "0" = Insertion Loss, Logic "1" = Isolation |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 2.0" x 1.0" x 0.4" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
