| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency: | 0.5 to 4.0 GHz |
|---|
| Frequency Min: | 0.5 GHz |
|---|
| Frequency Max: | 4 GHz |
|---|
| Insertion Loss (Typ): | 3.5 dB |
|---|
| Isolation (Typ): | 60 dB |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Switching Speed (Typ): | 50 ns |
|---|

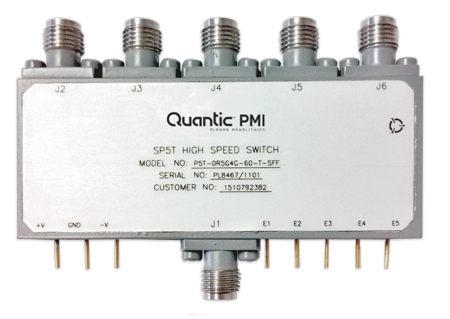

| Configuration: | SP5T |
|---|
| Isolation: | 60 dB Min - Measured 67.90 dB |
|---|
| Insertion Loss: | 3.0 dB Max (0.6 to 2.5 GHz),
3.5 dB Max (0.5 to 4.0 GHz) |
|---|
| VSWR In/Out: | 2.0:1 Max - Measured 1.81:1/1.84:1 |
|---|
| Input Power: | +10 dBm CW Max |
|---|
| Video leakage: | 50 mV @ 350 MHz BW Max |
|---|
| Switching Speed: | 50 ns Max (On/Off), 15 ns Max (Rise/Fall) |
|---|
| Control Signal: | Five Line TTL |
|---|
| Power Supply: | +5 VDC @ 250 mA Nom,
-12 VDC @ 100 mA Nom |
|---|
| Connectors: | SMA (F) |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Size: | 2.50" x 1.00" x 0.40" |
|---|
| Finish: | Painted Gray |
|---|
| Sealing: | Hermetic |
|---|
| Features: | Low Insertion Loss, High Isolation, Fast Switching Speed, Low Video Leakage, Small Size, Independent TTL Control |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -45 ºC to +90 ºC |
|---|
| Non-Operating Temperature: | -54 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
