Single Pole - Five Throw (SP5T)

Quantic PMI offers a variety of Single Pole - Five Throw (SP5T) designs which can include operating frequency ranges up to 70 GHz; connector options; reflective and absorptive configurations; excellent isolation; low insertion loss; high power capabilities; hermetic sealing; military or space screening; amplitude & phase matching and dual use components for surface mount or connectorized applications.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Part NumberStatusFrequencyFrequency MinFrequency MaxReflective / AbsorptiveIsolationInsertion LossSwitching Speed

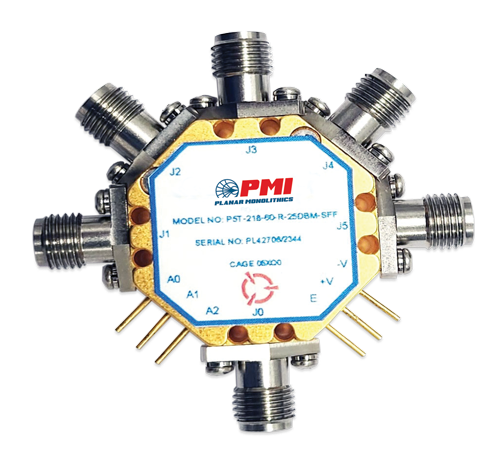

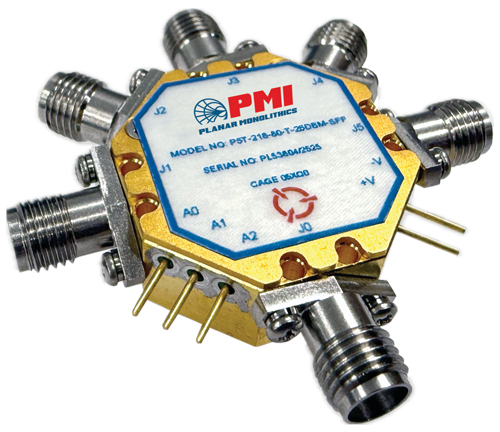

P5T-218-60-R-25DBM-SFF
Active		Active2.0 to 18.0 GHz2.0 GHz18.0 GHzReflective60 dB Min3.2 dB Max100 ns Max
P5T-0R5G18G-60-T-SFF-MICROD
Preliminary		Preliminary0.5 to 18.0GHz0.5 GHz18 GHzAbsorptive60 dB min.4.0 dB max.100 nsec max.
P5T-100M50G-100-T-RD
Preliminary		Preliminary0.1 to 50.0 GHz0.1 GHz50 GHzAbsorptive70 dB typ @ 0.1 to 1.0 GHz, 100 dB typ @ 1.0 to 18.0 GHz, 100 dB typ @ 18.0 to 40.0 GHz, 80 dB typ @ 40.0 to 50.0 GHz5.0 dB typ @ 0.1 to 18.0 GHz, 8.0 dB typ @ 18.0 to 40.0 GHz, 14.0 dB typ @ 40.0 to 50.0 GHz50 ns max.
P5T-2D2G2D4G-30-R-SFF
Preliminary		Preliminary2.2 to 2.4 GHz2.2 GHz2.4 GHzReflective30 dB Goal, 20 dB Minimum0.5 dB Goal, 1.0 dB Maximum500 ns Maximum
P5T-2D2G2D4G-30-R-TFF
Preliminary		Preliminary2.2 to 2.4 GHz2.2 GHz2.4 GHzReflective30 dB Goal, 20 dB Minimum0.5 dB Goal, 1.0 dB Maximum500 ns Maximum
SP5T-18G40G-60-T-292FF-HERM
Preliminary		Preliminary18.0 To 40.0 GHz18 GHz40 GHzAbsorptive60 dBc
-
60 ns Max
SWN-1140-5DT-STD-OPT100M1G-80ISO-TB515
Preliminary		Preliminary01. to 1.0 GHz1 GHz1 GHzAbsorptive80dB min1.4dB maxRise: 15ns max, Fall: 15ns max, Delay On: 100ns max, Delay Off: 100ns max
P5T-0R5G18G-60-R-SFF
Preliminary		Preliminary0.5 to 18.0 GHz0.5 GHz18 GHzReflective60dB min.3.25dB max.100 nsec max.
P5T-0R5G4G-60-T-SFF-DEC
Preliminary		Preliminary0.5 to 4.0 GHz0.5 GHz4 GHzAbsorptive60 dB Min3.5dB Max50 ns Max On/Off
15 ns Max Rise/Fall
P5T-0R5G4G-60-T-SFF
Active		Active0.5 to 4.0 GHz0.5 GHz4 GHzAbsorptive60 dB Min - Measured 67.90 dB3.0 dB Max (0.6 to 2.5 GHz),
3.5 dB Max (0.5 to 4.0 GHz)		50 ns Max (On/Off), 15 ns Max (Rise/Fall)
P5T-100M1G-90-T-55-SFF
Active		Active0.1 to 1.0 GHz0.1 GHz1 GHzAbsorptive90 dB Min - Measured 90 dB3.5 dB Max - Measured 2.9 dB50 ns Max - Measured 25 ns
P5T-500M40G-60-T-55-292FF-5G40G
Active		Active0.5 to 40.0 GHz0.5 GHz40 GHzAbsorptive74 dB Typ, 60 dB Min. - Measured 74.40 dB6 dB Typ., 8.0 dB Max - Measured 6.10 dB15 ns Typ. - Measured ‹15 ns

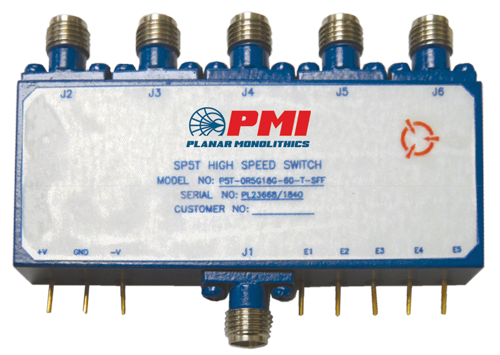

P5T-0R5G18G-60-T-SFF
Active		Active0.5 to 18.0 GHz0.5 GHz18 GHzAbsorptive60 dB min.4.0 dB max.100 nsec max.
P5T-0R5G4G-60-T-SFF-SP
Active		Active0.5 to 4.0 GHz0.5 GHz4 GHzAbsorptive60 dB Min3.0 dB Max (0.6 to 2.5 GHz),
3.5 dB Max (0.5 to 4.0 GHz)		50 ns Max (On/Off), 15 ns Max (Rise/Fall)
