| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SP5T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.1 to 50 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 50 |
|---|
| Insertion Loss (dB): | 5 dB Typ (0.1 to 18 GHz),
8 dB Typ (18 to 40 GHz),
14 dB Typ (40 to 50 GHz) |
|---|
| Insertion Loss - Typ (dB): | 5 dB |
|---|
| Isolation (dB): | 70 dB Typ (0.1 to 1 GHz),
100 dB Typ (1 to 18 GHz),
100 dB Typ (18 to 40 GHz),
80 dB Typ (40 to 50 GHz) |
|---|
| Isolation - Typ (dB): | 70 dB |
|---|
| Switching Speed: | 50 ns Max |
|---|
| Switching Speed - Typ: | 50 ns |
|---|
| VSWR In/Out: | 2.2:1 Typ (0.1 to 18 GHz),
2.5:1 Typ (18 to 40 GHz),
3.0:1 Typ (40 to 50 GHz) |
|---|
| Input Power (dBm): | 20 dBm CW Max |
|---|
| Control Signal: | TTL Logic |
|---|
| Power Supply: | +5 VDC @ 200 mA Max,
-5 VDC @ 200 mA Max |
|---|
| Connectors: | SMA Female |
|---|
| Power & Control Connector: | Solder Pins |
|---|

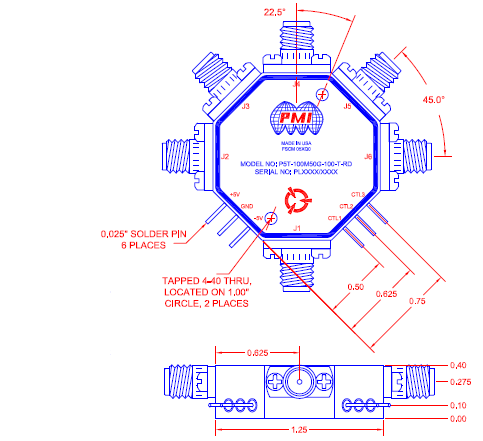

| Size: | 1.25" x 1.25" x 0.40" |
|---|
| Finish: | Gold Plated |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40 °C to +85 °C |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
