P5T-218-80-T-25DBM-SMP-HERM Preliminary

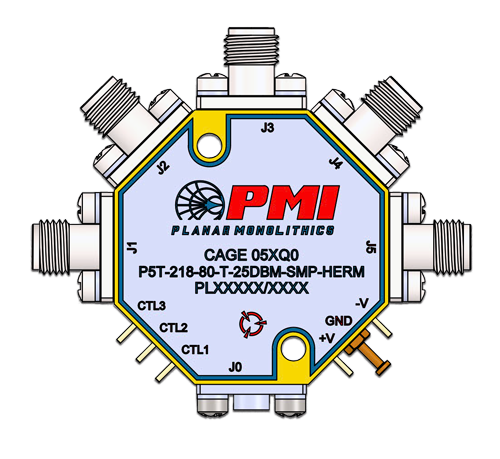

PMI Model P5T-218-80-T-25DBM-SMP-HERM is a single pole, five throw absorptive switch designed to operate over the 2 GHz to 18 GHz frequency range and to maintain a low insertion loss, high isolation, fast switching speed, and 25 dBm power handling. Housing size is 1.25" x 1.25" x 0.402" with SMP male and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.2 dB Max |
| Isolation (dB): | 80 dB Min |
| Switching Speed: | 50 ns Max |
| VSWR In/Out: | 2.0:1 Max |
| Input Power (dBm): | 25 dBm Max, 20 dBm Max (Hot Switching) |
| Control Signal: | TTL Logic |
| Power Supply: | +5 to +15 VDC @ 120 mA Nom -5 to -15 VDC @ 65 mA Nom |
| Connectors: | SMA Female (J1 - J5) SMP Male (J0) |
| Size: | 1.25" x 1.25" x 0.402" |
| Finish: | Gold Plated |
| Sealing: | Hermetic |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103 COND. B |
| Shock: | MIL-STD-202, METHOD 213 COND. B |
| Vibration: | MIL-STD-202, METHOD 204 COND. B |
| Altitude: | MIL-STD-202, METHOD 105 COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107 COND. A |
