| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SP5T |
|---|
| Reflective / Absorptive: | Reflective |
|---|
| Frequency (GHz): | 2.2 to 2.4 |
|---|
| Frequency Min (GHz): | 2.2 |
|---|
| Frequency Max (GHz): | 2.4 |
|---|
| Insertion Loss (dB): | 0.5 dB Goal,
1 dB Max |
|---|
| Insertion Loss - Typ (dB): | 1 dB |
|---|
| Isolation (dB): | 30 dB Goal,
20 dB Min |
|---|
| Isolation - Typ (dB): | 20 dB |
|---|
| Switching Speed: | 500 ns Max |
|---|
| Switching Speed - Typ: | 500 ns |
|---|
| Input Power (dBm): | 75 W Max average, 150 W Max peak |
|---|
| Power Supply: | +5 VDC @ 700 mA Max,
-75 VDC @ 50 mA Max |
|---|
| Connectors: | SMA Female |
|---|
| Power & Control Connector: | Solder Pins |
|---|

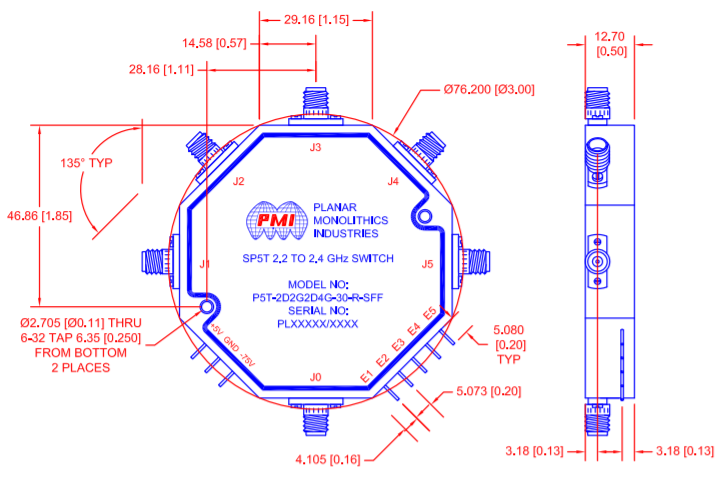

| Size: | Ø76.2 mm x 12.7 mm, Ø3.0" x 0.5" |
|---|
| Finish: | Blue Epoxy |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
