P6T-0D418-75-T-SFF Preliminary
SP6T Absorptive Switch
Quantic PMI Model P6T-0D418-75-T-SFF is a single pole, six throw, absorptive switch that operates over the frequency range of 0.4 to 18 GHz that has a minimum isolation of 75 dB and a minimum return loss of -10 dB. Housing measures 2.992" x 1.811" x 0.394" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP6T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.4 to 18 |
| Frequency Min (GHz): | 0.4 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3 dB @ 0.4 to 10 GHz Max, 4 dB @ 10 to 18 GHz Max |
| Isolation (dB): | 75 dB Min |
| Switching Speed: | 50 ns Max (Rise/Fall) 100 ns Max (On/Off) |
| Operating Power: | 27 dBm (Com Port), 23 dBm (Other Ports) 8 W Max Peak @ 1 µs pulse width (Note: When input 27 dBm, the open port can not be full reflected) |
| Impedance: | 50 Ohm |
| Control Logic: | 3 BCD, 0 VDC < "0" < 0.8 VDC, 2.4 VDC < "1" < 5 VDC |
| Power Supply: | +5 ± 0.25 VDC @ 250 mA Max -15 ± 0.25 VDC @ 100 mA Max |
| Return Loss (All Ports On or Off State): | -10 dB Min |
| Rise/Fall Time (10% to 90% RF, 90% to 10% RF): | 50 ns Max |
| On/Off Time (50% TTL to 90% RF, 50% TTL to 10% RF): | 100 ns Max |
| EMC: | -80 dB Min |
| Connectors: | SMA Female |

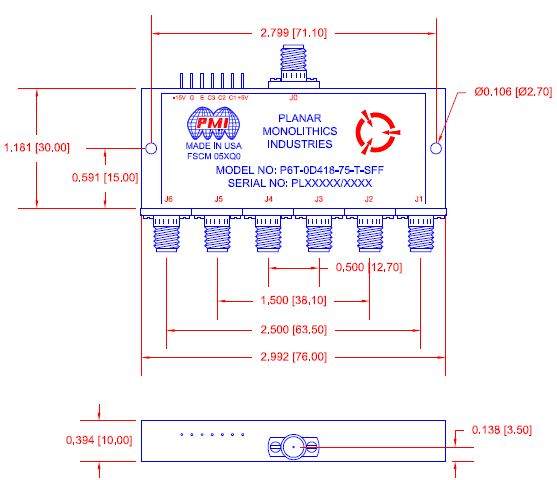

| Size: | 2.992" x 1.811" x 0.394" |
| Finish: | Alodine and Laser Sealing |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
