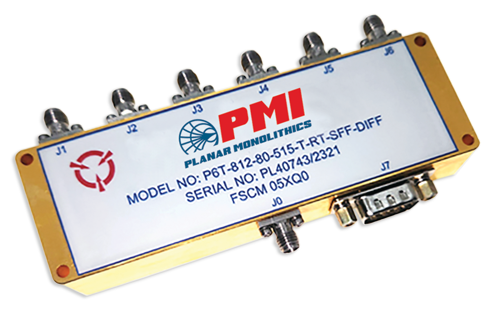

Part NumberStatusFrequencyFrequency MinFrequency MaxReflective / AbsorptiveIsolationInsertion LossSwitching Speed

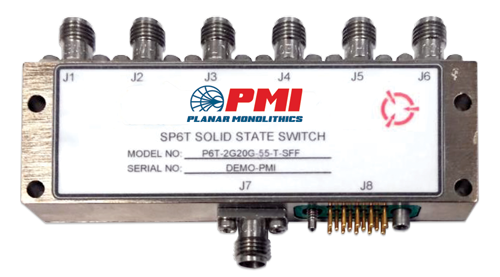

P6T-17G40G-60-T-512-292FFPreliminary17.0 to 40.0 GHz17.0 GHz40.0 GHzAbsorptive60 dB max.6.5 dB max.50 ns max.
P6T-0D418-75-T-SFFPreliminary0.4 to 18.0 GHz0.4 GHz18.0 GHzAbsorptive75 dB min.3.0 dB @ 0.4 to 10.0 GHz max.
4.0 dB @ 10.0 to 18.0 GHz max.
Rise/Fall Time: 50 ns max.
On/Off Time: 100 ns max.
P6T-30M6-70-T-SFFPreliminary0.03 to 6.0 GHz0.03 GHz6.0 GHzAbsorptive70 dB min.3.0 dB max.Rise/Fall Time: 80 ns max.
On/Off Time: 200 ns max.
P6T-2G20G-55-T-SFFActive2.0 to 20.0 GHz2.0 GHz20.0 GHzAbsorptive55 dB Min4.5 dB MaxRISE: 30 ns Max 10% to 90%
FALL: 30 ns Max 90% to 10%
P6T-0R5G18G-60-T-512-SFF-JPPreliminary0.5 to 18.0 GHz0.5 GHz18 GHzAbsorptive60 dB max4 dB max50 ns max (On - 50% TTL to 90% RF), (Off - 50% TTL to 10% RF)
P6T-0R5G18G-60-T-SFFPreliminary0.5 to 18.0 GHz0.5 GHz18 GHzAbsorptive60dB min.4.25dB max.100 nsec max.
P6T-33G38G-60-T-5-292FFPreliminary33.0 to 38.0 GHz33 GHz38 GHzAbsorptive60 dB max.6.5 dB max.50 ns max
P6T-4G8G-70-T-SFFPreliminary4.0 to 8.0 GHz4 GHz8 GHzAbsorptive70 dB min.2.9 dB max.500 ns max.
P6T-7G18G-55-R-SFFPreliminary7.0 to 18.0 GHz7 GHz18 GHzReflective55 dB min.4.2 dB max.30 ns max. (50% TTL to 90% RF), 15 ns max. (10% RF to 90% RF)
PMSN-6DT-05-STD-JW-RLPreliminary0.5 to 18.0 GHz0.5 GHz18 GHzAbsorptive60dB min4.25dB maxRise/Fall: 10ns typ, 15ns max, Delay On/Off: 75ns typ, 100ns max
P6T-0R5G18G-60-R-1WPreliminary0.5 to 18.0GHz0.5 GHz18 GHzReflective60 dB min.4.5 dB max.Rise/Fall Time: 15 ns max.
Delay On/Off: 75 ns max.
P6T-0R518G-60-T-515-SFF-MSNPreliminary0.5 to 18.0 GHz0.5 GHz18 GHzAbsorptive60 dB4.25 dBRise/Fall Time: 10 ns typ., 15 ns max.
Delay On/Off: 75 ns typ., 100 ns max.
P6T-0R5G18G-60-R-SFFActive0.5 to 18.0 GHz0.5 GHz18 GHzReflective60 dB Min - Measured 77 dB3.5 dB Max - Measured 3.3 dB100 ns Max - Measured <20 ns
P6T-2G18G-60-T-512-SFF-LVActive2.0 to 18.0 GHz2 GHz18 GHzAbsorptive60 dB Max - Measured 78 dB4 dB Max - Measured 3.98 dB50 ns Max - Measured 30 ns
P6T-7G18G-45-T-SFFActive7.0 to 18.0 GHz7 GHz18 GHzAbsorptive45 dB Min (7.0 to 8.0 GHz),
45 dB Min (8.0 to 12.4 GHz),
40 dB Min (12.4 to 18.0 GHz)
2.0 dB Max (7.0 to 8.0 GHz),
3.0 dB Max (8.0 to 12.4 GHz),
3.5 dB Max (12.4 to 18.0 GHz)
30 ns Max (90% RF to 10% RF)
P6T-2G18G-60-T-512-SFF-LV-SPActive2.0 to 18.0 GHz2 GHz18 GHzAbsorptive60 dB Max4 dB Max50 ns Max (On - 50% TTL to 90% RF), (Off - 50% TTL to 10% RF)

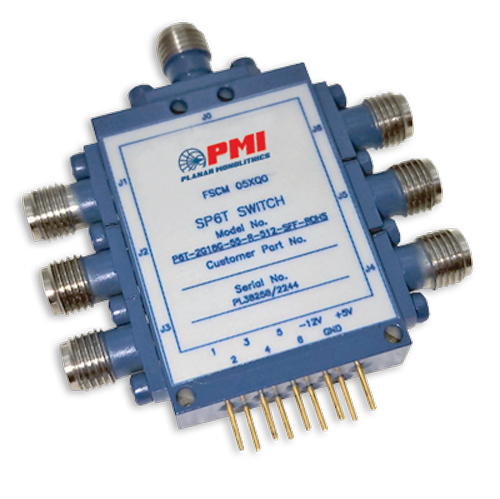

P6T-2G18G-55-R-512-SFFActive2.0 to 18.0 GHz2 GHz18 GHzReflective55 dB Min - Measured 73.7 dB7.0 dB Max - Measured 4.5 dB15 ns Max
