P6T-0R5G40G-60-T-1212-292FF Preliminary

SP6T Absorptive Switch

P6T-0R5G40G-60-T-1212-292FF
  • P6T-0R5G40G-60-T-1212-292FF
  • P6T-0R5G40G-60-T-1212-292FF
  • P6T-0R5G40G-60-T-1212-292FF
  • P6T-0R5G40G-60-T-1212-292FF
Product Feature

Quantic PMI Model P6T-0R5G40G-60-T-1212-292FF is a single pole, six throw absorptive solid state switch that operates over the frequency range of 0.5 to 40 GHz that has a maximum insertion loss of 6.5 dB with a minimum isolation specification of 60 dB and operates at 23 dBm CW maximum. Package size is 1.5" x 1.87" x 0.4" with SMA female connectors.

Product Specifications

General Parameters:
Status: Preliminary
Configuration: SP6T
Reflective / Absorptive: Absorptive
Frequency (GHz): 0.5 to 40
Frequency Min (GHz): 0.5
Frequency Max (GHz): 40
Insertion Loss (dB): 6.5 dB Max
Isolation (dB): 60 dB Min
Switching Speed: 50 ns Max
VSWR In/Out: 2.0:1 Max
Input Power: 23 dBm CW Max (Operating)

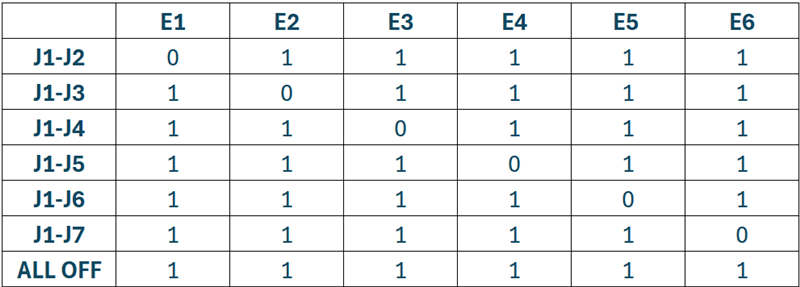

Control Signal: 6 Line TTL Logic
Logic 0: Insertion Loss
Logic 1: Isolation
Power Supply: +12 VDC @ 300 mA Max
-12 VDC @ 100 mA Max
Connectors: 2.92mm Female - removable
Size: 1.5" x 2.0" x 0.4"
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -40 °C to +85 °C
Temperature (Non-Operating): -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
