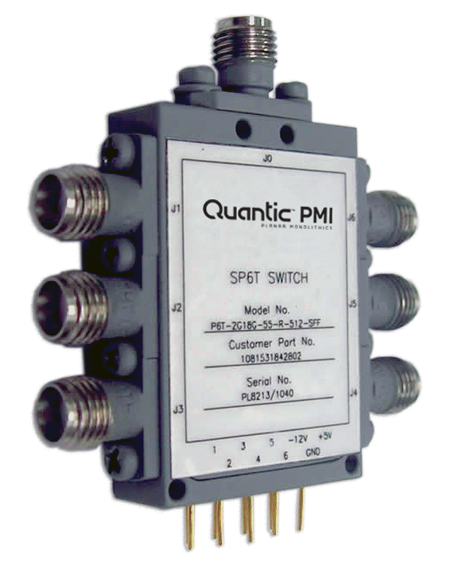

PMI Model No. P6T-2G18G-55-R-512-SFF is a high speed, single pole, six throw, reflective switch capable of switching within 15 ns. The frequency range is 2.0 to 18.0 GHz and has over 55 dB of isolation. This model was designed to produce very low video transients of 15 mV peak to peak and a video transient spectral content of -65 dBm maximum.

Product Specifications

General Parameters:
Status: Active
Frequency: 2.0 to 18.0 GHz
Frequency Min: 2 GHz
Frequency Max: 18 GHz
Insertion Loss (Typ): 7 dB
Isolation (Typ): 55 dB
Reflective / Absorptive: Reflective
Switching Speed (Typ): 15 nsec
Configuration: SP6T
Isolation: 55 dB Min - Measured 73.7 dB
Insertion Loss: 7.0 dB Max - Measured 4.5 dB
VSWR In/Out: 2.0:1 Max - Measured 1.93:1
Input Power: +10 dBm CW Max
Survival Power: +25 dBm CW Max
Switching Speed: 15 ns Max
Video Transient: 15 mV peak to peak Max
Control Signal: Six Line TTL
Power Supply: +5 VDC @ 200 mA – Measured 97 mA, -12 VDC @ 60 mA – Measured 6 mA
Connectors: SMA (F)
Size: 1.0" x 1.4" x 0.3"
Finish: Painted Gray
Features: Low Insertion Loss, High isolation, Fast Switching Speed, Small Size
Environmental Ratings:
Operating Temperature: -55 to +85 ºC
Non-Operating Temperature: -60ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
