P6T-2G18G-60-T-512-SFF-LV Active

SP6T, Absorptive, Low Video Transient, Solid-State Switch

P6T-2G18G-60-T-512-SFF-LV
Product Feature

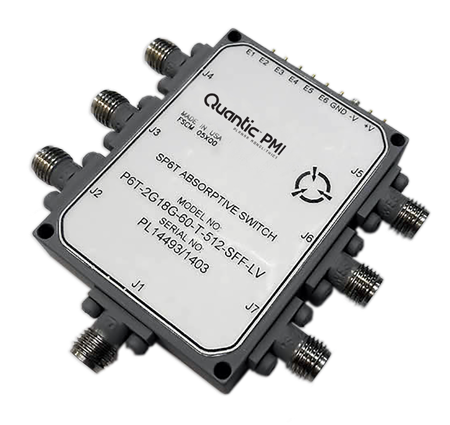

Quantic PMI Model P6T-2G18G-60-T-512-SFF-LV is a single pole, six throw, absorptive, low video transient, solid state switch operating over the frequency range of 2.0 to 18 GHz that has a maximum insertion loss of 4 dB and a minimum isolation of 60 dB with video transients of 2 mV typically. Operates at 23 dBm CW maximum and has a survival of 27 dBm CW maximum and offers a typical switching speed of 30 ns. The unit is supplied with removable SMA Female connectors in a hermetically sealed housing that measures 1.5" x 2.0" x 0.4".

Product Specifications

General Parameters:
Status: Active
Configuration: SP6T
Reflective / Absorptive: Absorptive
Frequency (GHz): 2 to 18
Frequency Min (GHz): 2
Frequency Max (GHz): 18
Insertion Loss (dB): 4 dB Max
Insertion Loss - Typ (dB): 4 dB
Isolation (dB): 60 dB Max
Isolation - Typ (dB): 60 dB
Switching Speed: 50 ns Max
Switching Speed - Typ: 50 ns
VSWR In/Out: 2.0:1 Max - Measured 2.00:1
Input Power: 23 dBm CW Max (Operating)
27 dBm CW Max (Survival)
Video leakage: 50 mV Peak-Peak Max - Measured 2 mV at 300 MHz BW
Impedance: 50 Ohm
Control Signal: 6 Line TTL Logic
Control Logic 0: 1.6 mA Max SINK @ 0.4 V (Insertion Loss)
Control Logic 1: 40 µA Max Source @ 2.4 V (Isolation)
Power Supply: +5 VDC @ 300 mA Typ - Measured 121 mA
-12 VDC @ 100 mA Typ - Measured 33 mA
Power & Control Connector: Solder Pins
Connectors: SMA Female - removable
Size: 1.5" x 2.0" x 0.4"
Finish: Hermetic
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature (Operating): -55 ºC to +85 ºC
Temperature (Non-Operating): -60 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
