P6T-2G18G-60-T-512-SFF-LV-SP Active
SP8T Absorptive, Low Video Transient, Solid-state Switch
Additional Documents
- Product Feature
- Test Report - 1/27/14
- PL32150 - Unit Data
- PL32151 - Unit Data
- PL32152 - Unit Data
- PL32153 - Unit Data
- PL32154 - Unit Data
- PL32730 - Unit Data
- PL32731 - Unit Data
- PL32732 - Unit Data
- PL32733 - Unit Data
- PL32734 - Unit Data
- PL33479 - Unit Data
- PL33481 - Unit Data
- PL33482 - Unit Data
- PL33483 - Unit Data
- PL33644 - Unit Data
- PL33645 - Unit Data

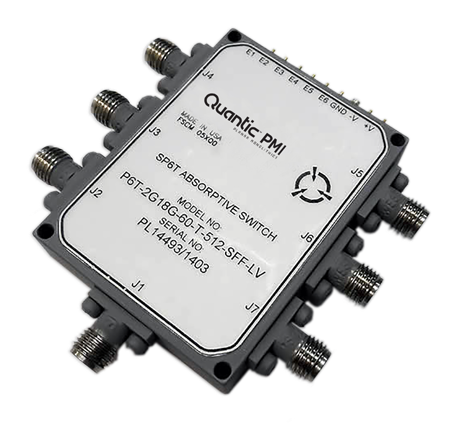

Quantic PMI Model P6T-2G18G-60-T-512-SFF-LV-SP is a single pole, six throw, absorptive, low video transient, solid state switch operating over the frequency range of 2 to 18 GHz that has a maximum insertion loss of 4 dB and a minimum isolation of 60 dB with video transients of 2 mV typically. Operates at 23 dBm CW maximum and has a survival of 27 dBm CW maximum and offers a typical switching speed of 30 ns. Supplied with removable SMA Female connectors in a hermetically sealed housing that measures 1.5" x 2.0" x 0.4".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP6T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 4 dB Max |
| Insertion Loss - Typ (dB): | 4 dB |
| Isolation (dB): | 60 dB Max |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 50 ns Max |
| Switching Speed - Typ: | 50 ns (On - 50% TTL to 90% RF), (Off - 50% TTL to 10% RF) |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 23 dBm CW Max (Operating), 27 dBm CW Max (Survival) |
| Video leakage: | 50 mV Peak-Peak Max |
| Impedance: | 50 Ohm |
| Control Signal: | 6 Line TTL Logic *Surge Protection Included on TTL Lines |
| Control Logic 0: | 1.6 mA Max SINK @ 0.4 V (Insertion Loss) |
| Control Logic 1: | 40 µA Max Source @ 2.4 V (Isolation) |
| Power Supply: | +5 VDC @ 300 mA Typ, -12 VDC @ 100 mA Typ |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - removable |
| Size: | 1.5" x 2.0" x 0.4" |
| Finish: | Hermetic |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Non-Operating): | -60 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
