| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SP6T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.03 to 6 |
|---|
| Frequency Min (GHz): | 0.03 |
|---|
| Frequency Max (GHz): | 6 |
|---|
| Insertion Loss (dB): | 3 dB Max |
|---|
| Isolation (dB): | 70 dB Min |
|---|
| Switching Speed: | 80 ns Max (Rise/Fall)
200 ns Max (On/Off) |
|---|
| Operating Power: | 27 dBm (Com Port),
23 dBm (Other Ports) 8 W Max Peak @ 1 µs pulse width
(Note: When input 27 dBm, the open port can not be full reflected) |
|---|
| Impedance: | 50 Ohm |
|---|
| Control Logic: | 3 BCD, 0 VDC < "0" < 0.8 VDC,
2.4 VDC < "1" < 5 VDC |
|---|
| Power Supply: | +5 ± 0.25 VDC @ 250 mA Max
-15 ± 0.25 VDC @ 100 mA Max |
|---|
| Return Loss (All Ports On or Off State): | -12 dB Min |
|---|
| Rise/Fall Time (10% to 90% RF, 90% to 10% RF): | 80 ns Max |
|---|
| On/Off Time (50% TTL to 90% RF, 50% TTL to 10% RF): | 200 ns Max |
|---|
| EMC: | -80 dB Min |
|---|
| Connectors: | SMA Female |
|---|

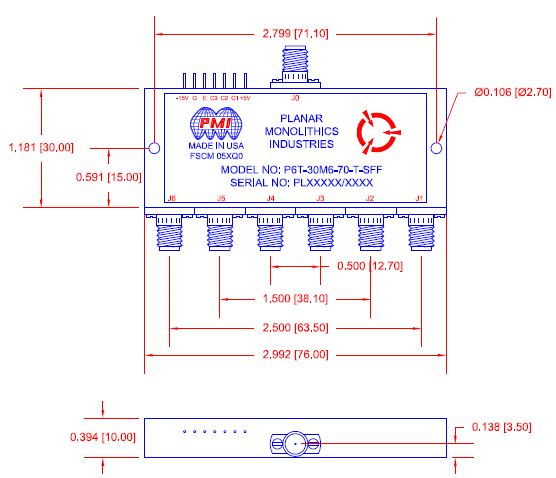

| Size: | 2.992" x 1.811" x 0.394" |
|---|
| Finish: | Alodine and Laser Sealing |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature (Operating): | -40 °C to +85 °C |
|---|
| Temperature (Non-Operating): | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
