P7T-0R8G18G-60-T-SFF-15MD-LD-2 Preliminary
SP7T Absorptive Switch

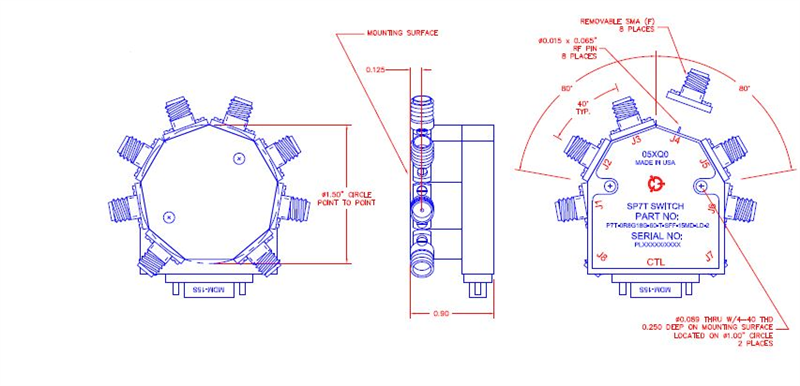

Quantic PMI Model P7T-0R8G18G-60-T-SFF-15MD-LD-2 is single pole, seven throw, absorptive switch that operates over a frequency range of 0.8 to 18 GHz with a 4.3 dB maximum insertion loss, and 60 dB isolation minimum @ 18 GHz. Housing measures 1.5"Ø x 0.9" excluding 15-pin Micro-D control connector with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP7T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.8 to 18 |
| Frequency Min (GHz): | 0.8 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 4.3 dB Max |
| Isolation (dB): | 60 dB Min |
| Switching Speed: | 15 ns Max (Rise/Fall) 75 ns Max (Delay On/Off) |
| VSWR In/Out: | 1/1/1900 12:01:00 AM |
| VSWR Out/Off: | 1/1/1900 12:01:00 AM |
| Input Power: | 20 dBm CW (Standard) |
| Survival Power: | 1 W CW, 10 W Peak 1 µs |
| Amplitude Balance: | ±1 dB Max @ Room Temp (Arm to Arm) |
| Phase Balance: | ±20° Max @ Room Temp (Arm to Arm) |
| Power Supply: | +5 VDC @ 350 mA Max -5 VDC @ 100 mA Max |
| Control Signal: | TTL Logic (15 Pin Micro D Connector) "0" = On = 0 to +0.8 VDC (Closed Circuit) "1" = Off = +2 to +5 VDC (Open Circuit) |
| Power & Control Connector: | 15 Pin Micro-D |
| Connectors: | SMA Female |
| Size: | 1.5"Ø x 0.9" excluding 15-pin Micro-D control connector |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
