Part NumberStatusFrequencyFrequency MinFrequency MaxReflective / AbsorptiveIsolationInsertion LossSwitching Speed
P7T-SUM-40-C-SFFActive0.5 to 18 GHz0.5 GHz18 GHz
-
40 dB Min for any selected Input3.1 dB MaxJ1 - J5: 20 MHz Max with 50 ns pulse withs up to 50% duty cycle,
J6, J7: 0.6 MHz Max
P7T-0R8G18G-60-T-SFF-15MD-LD-2Preliminary0.8 to 18.0 GHz0.8 GHz18.0 GHzAbsorptive60 dB min.4.3 dB max.Rise/Fall Time: 15 ns max.
Delay On/Off Time: 75 ns max.

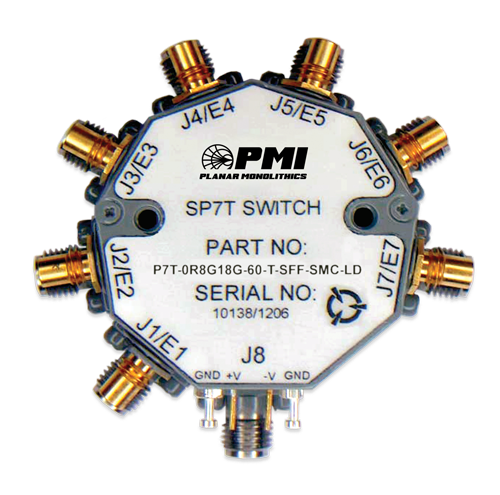

P7T-0R8G18G-60-T-SFF-SMC-LDActive0.8 to 18.0 GHz0.8 GHz18.0 GHzAbsorptive60 dB min.4.3 dB max.15 ns Rise/Fall
75 ns Delay
P7T-0R8G18G-60-T-SFF-15MD-LDPreliminary0.8 to 18.0 GHz0.8 GHz18.0 GHzAbsorptive60 dB min.4.3 dB max.Rise/Fall Time: 15 ns max.
Delay On/Off: 75 ns max.
P7T-8G18G-60-R-SFFPreliminary8.0 to 18.0 GHz8 GHz18 GHzReflective60 dB min.2.8 dB @ 8.0 to 12.0 GHz
3.5 dB @ 12.0 to 18.0 GHz
Rise: 15 ns max.
Fall: 15 ns max.
Delay On: 100 ns max.
Delay Off: 100 ns max.
P7T-0R518G-60-T-515-SFF-MSNPreliminary0.5 to 18.0 GHz0.5 GHz18 GHzAbsorptive60 dB4.25 dBRise: 10 ns typ, 15 ns max, Fall: 10 ns typ, 15 ns max, Delay On: 75 ns typ, 100 ns max, Delay Off: 75 ns typ, 100 ns max
P7T-0R8G18G-60-T-SFF-SMC-1WPreliminary0.8 to 18.0 GHz0.8 GHz18 GHzAbsorptive60 dB min.4.3 dB max.15 ns max.
P7T-0R8G18G-60-T-SFF-SMC-PMActive0.8 to 18.0 GHz0.8 GHz18 GHzAbsorptive60 dB min.4.3 dB max.Rise/Fall Time: 15 ns max.
Delay On/Off: 75 ns max.

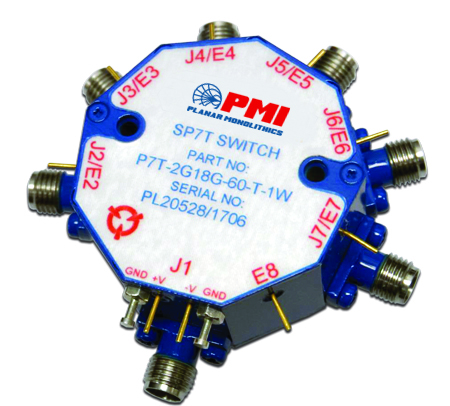

P7T-2G18G-60-T-1WActive2.0 to 18.0 GHz2 GHz18 GHzAbsorptive60 dB Min - Measured Unit A: 70.05 dB, Unit B: 71.95 dB4.5 dB Max - Measured Unit A: 4.09 dB, Unit B: 4.31 dB15 ns Max - Measured Unit A: 11.9 ns, Unit B: 8.6 ns
P7T-0R8G18G-60-T-SFF-SMCActive0.8 to 18.0 GHz0.8 GHz18 GHzAbsorptive60 dB Min4.3 dB MaxRise/Fall - 15 ns Max
Delay On/Off - 75 ns Max
