P7T-0R8G18G-60-T-SFF-SMC Active
High Speed, SP7T, Absorptive Switch
Additional Documents
- Product Feature
- Test Report - 10/7/19
- Test Report - 2/8/12
- Test Report - 8/22/12
- Isolation Report
- Unit Data
- PL12220 - Unit Data
- PL12221 - Unit Data
- PL12222 - Unit Data
- PL12223 - Unit Data
- PL12224 - Unit Data
- PL26698 - Unit Data
- PL26699 - Unit Data
- PL26700 - Unit Data
- PL26701 - Unit Data
- PL26702 - Unit Data
- PL27147 - Unit Data

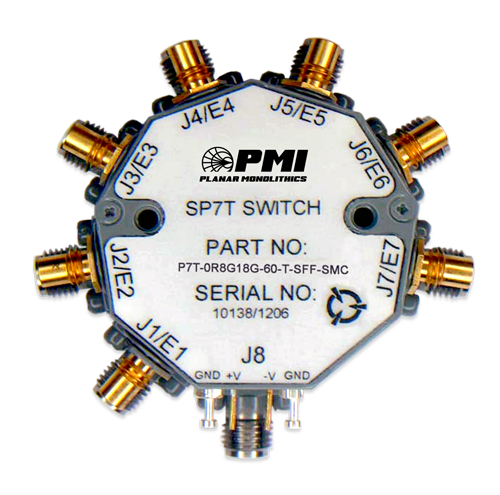

PMI Model P7T-0R8G18G-60-T-SFF-SMC is a high speed, single pole, seven throw, absorptive switch capable of switching within 75 ns with an operating frequency range of 0.8 to 18 GHz and has over 60 dB of isolation with insertion loss of 4.3 dB maximum. This switch operates on + 5 VDC, 350 mA and -5 VDC, 100 mA typically and has an operating input power rating of 20 dBm CW. Housing measures 1.5"Ø x 0.9" with removable SMA female connectors and SMC male control connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP7T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.8 to 18 |
| Frequency Min (GHz): | 0.8 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 4.3 dB Max |
| Insertion Loss - Typ (dB): | 4.3 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 15 ns Max (Rise/Fall) 75 ns Max (Delay On/Off) |
| Switching Speed - Typ: | 75 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 20 dBm CW |
| Survival Power: | 1 W CW, 10 W Peak 1 µs |
| Features: | Low Insertion Loss, High isolation, Fast Switching Speed, Small Size |
| Power Supply: | +5 VDC @ 300 mA Max -5 VDC @ 100 mA Max |
| Control Signal: | TTL Logic: "0" = On, "1" = Off |
| Power & Control Connector: | SMC |
| Connectors: | SMA Female |
| Size: | 1.5"Ø x 0.9" |
| Finish: | Painted Gray |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
