P7T-0R8G18G-60-T-SFF-SMC-1W Preliminary
SP7T Absorptive Switch

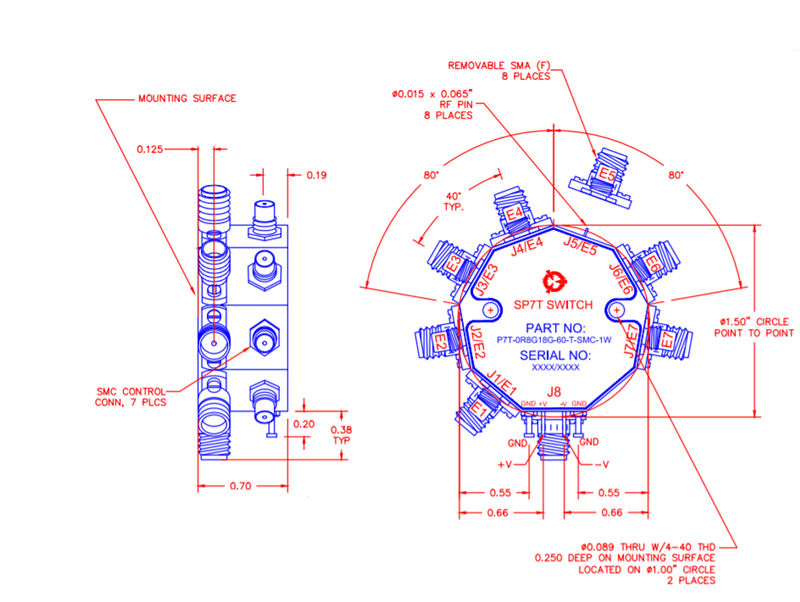

PMI Model P7T-0R8G18G-60-T-SFF-SMC-1W is a single pole, seven throw, absorptive switch with SMA connectors and SMC control connectors that has a frequency range of 0.8 to 18 GHz, 4.3 dB maximum insertion loss, and 60 dB isolation minimum @ 18 GHz. Housing measures 1.5"Ø x 0.7" with removable SMA female connectors and SMC male control connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP7T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.8 to 18 |
| Frequency Min (GHz): | 0.8 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 4.3 dB Max |
| Insertion Loss - Typ (dB): | 4.3 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 15 ns Max |
| Switching Speed - Typ: | 75 ns |
| Switching Speed (On/Off): | 15 ns Max |
| Phase Matching: | 6° Max (In to out all ports) |
| VSWR In/Out: | 2.0:1 |
| Input Power: | 30 dBm CW (Standard) |
| Survival Power: | 1 W CW, 10 W Peak 1 µs |
| Delay On: | 75 ns Max |
| Delay Off: | 75 ns Max |
| Power Supply: | +5 VDC @ 350 mA Max, -15 VDC @ 100 mA Max |
| Control Signal: | TTL Logic "0" = On, "1" = Off |
| Power & Control Connector: | SMC Male |
| Connectors: | SMA Female - removable |
| Size: | 1.5"Ø x 0.7" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
