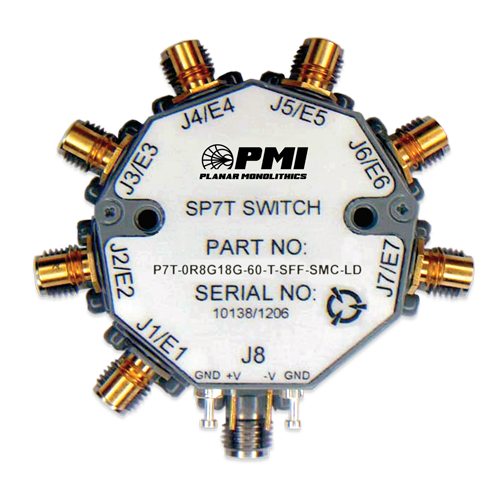

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency: | 0.8 to 18.0 GHz |
|---|
| Frequency Min: | 0.8 GHz |
|---|
| Frequency Max: | 18.0 GHz |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Configuration: | SP7T |
|---|
| Isolation: | 60 dB min. |
|---|
| Insertion Loss: | 4.3 dB max. |
|---|
| VSWR In/Out: | 2.0:1 |
|---|
| Input Power: | +20 dBm CW (Standard) |
|---|
| Survival Power: | 1 W CW, 10 W Peak, 1 us |
|---|
| Switching Speed: | 15 ns Rise/Fall
75 ns Delay |
|---|
| Control Signal: | TTL Logic
"0" = On = 0 to +0.8 VDC (Closed Circuit)
"1" = Off = +2 to +5 VDC (Open Circuit) |
|---|
| Power Supply: | +5 V @ 350 mA max.
-5 V @ 100 mA max. |
|---|
| Finish: | Painted Blue |
|---|
| Amplitude Balance: | ±1.0 dB max. @ Room Temp (Arm to Arm) |
|---|
| Phase Balance: | ±20 degrees max. @ Room Temp (Arm to Arm) |
|---|
| VSWR Out/Off: | 2.0:1 |
|---|
| Speed: | Rise: 15 ns max.
Fall: 15 ns max.
Delay On: 75 ns max.
Delay Off: 75 ns max. |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -40°C to +85°C |
|---|
| Non-Operating Temperature: | -65°C to +125°C |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
