P7T-0R8G18G-60-T-SFF-SMC-PM Active
SP7T Absorptive Switch

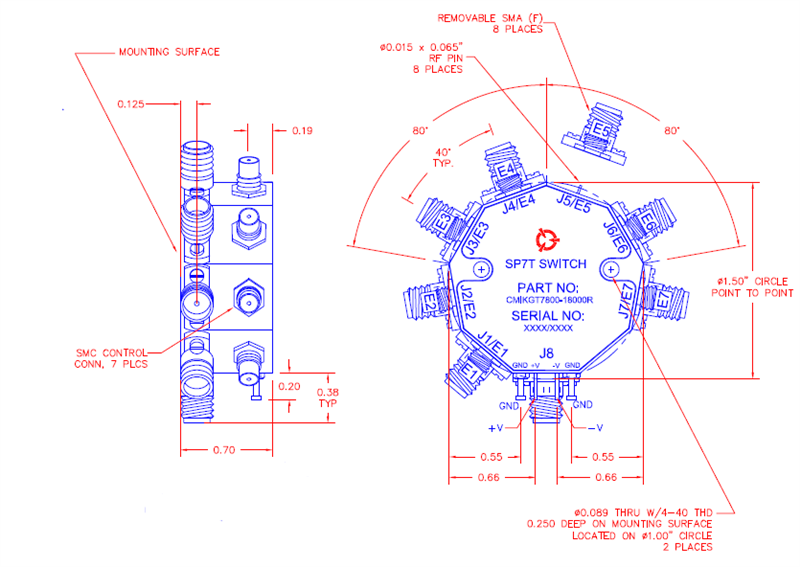

PMI Model P7T-0R8G18G-60-T-SFF-SMC-PM is a high speed, single pole, seven throw, absorptive switch capable of switching within 75 ns that has an operating frequency range of 0.8 to 18 GHz with over 60 dB of isolation and a insertion loss of 4.3 dB maximum. This switch operates on +5 VDC, 350 mA and -5 VDC, 100 mA typically with an an operating input power rating of 20 dBm CW. Housing measures 1.5"Ø x 0.9" with removable SMA female connectors and SMC male control connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP7T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.8 to 18 |
| Frequency Min (GHz): | 0.8 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 4.3 dB Max |
| Insertion Loss - Typ (dB): | 4.3 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 15 ns Max (Rise/Fall) 75 ns Max (Delay On/Off) |
| Switching Speed - Typ: | 75 ns |
| VSWR In/Out: | 2.0:1 Max |
| Input Power: | 20 dBm CW Max |
| Survival Power: | 1 Watt CW, 10 W Peak 1 µs |
| Delay On: | 75 ns Max |
| Delay Off: | 75 ns Max |
| Control Signal: | TTL Logic |
| Power & Control Connector: | SMC |
| Connectors: | SMA Female |
| Size: | 1.5"Ø x 0.9" |
| Finish: | Painted Gray |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
