P7T-2G18G-60-T-1W Active
SP7T Absorptive Switch

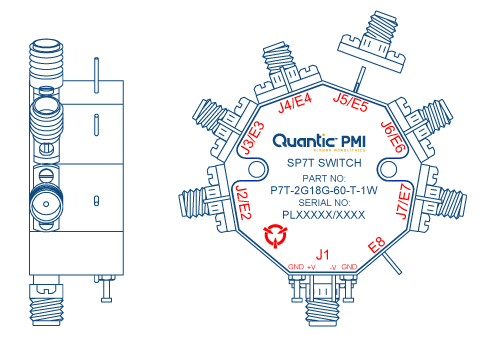

Quantic PMI Model P7T-2G18G-60-T-1W is a single pole, seven throw absorptive switch with phase and amplitude matching of ±6° and ±0.5 dB respectively, relative to J2. This model has also been designed to operate over the 2 to 8 GHz frequency range with low in-band video leakage of -65 dBm. Housing measures 1.5"Ø x 0.7" with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP7T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 2.0 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 4.5 dB Max |
| Insertion Loss - Typ (dB): | 4.5 dB |
| Isolation (dB): | 60 dB Min |
| Isolation - Typ (dB): | 60 dB |
| Switching Speed: | 15 ns Max |
| Switching Speed - Typ: | 75 ns |
| Switching Speed (On/Off): | 15 ns Max |
| Phase Matching: | ±6° Max (Ref. to J8), ±15° Unit to Unit Max (Between Pairs) |
| VSWR In/Out: | 1/1/1900 12:01:00 AM |
| Input Power: | 30 dBm CW Max |
| Survival Power: | 1.2 W CW, 10 W Peak 1 µs |
| Video leakage: | -65 dBm In-Band Max Measured: Unit A: -80.32 dB, Unit B: -80.31 dB |
| Off Time: | ±5 ns (Ref, to J8) |
| Delay On: | 75 ns Max |
| Delay Off: | 75 ns Max |
| Power Supply: | +5 VDC @ 350 mA Max - Measured 264 mA, -15 VDC @ 100 mA Max - Measured 44 mA |
| Control Signal: | TTL Logic "0" = On, "1" = Off |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female - removable |
| Size: | 1.5"Ø x 0.7" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
