P7T-8G18G-60-R-SFF Preliminary
SP7T Reflective Switch

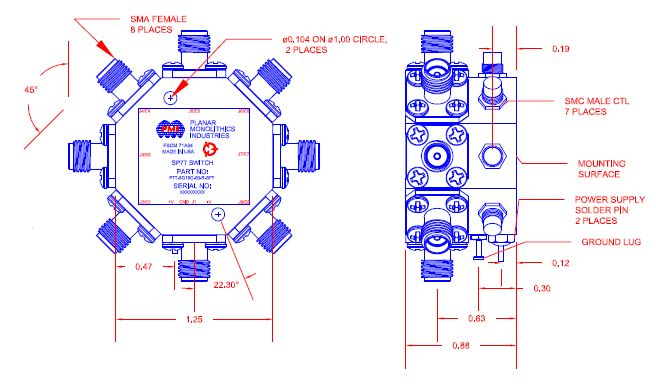

Quantic PMI Model P7T-8G18G-60-R-SFF is a single pole, seven throw, reflective switch that operates over the frequency range of 8 to 18 GHz that has a minimum isolation of 60 dB. Housing measues 1.25"Ø x 0.88" and is outfitted with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP7T |
| Reflective / Absorptive: | Reflective |
| Frequency (GHz): | 8 to 18 |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 2.8 dB (8 to 12 GHz), 3.5 dB (12 to 18 GHz) |
| Isolation (dB): | 60 dB Min |
| Switching Speed: | 15 ns Max (Rise/Fall) 100 ns Max (Delay On/Off) |
| VSWR In/Out: | 2.0:1 |
| Input Power: | 20 dBm CW Max |
| Survival Power: | 1 W CW, 10 W Peak 1 µs |
| Phase Variation: | ±10° Max Port to Port |
| Control Signal: | TTL Logic "0"=On, "1"=Off |
| Power & Control Connector: | CTL: SMC Male Power Supply: Solder Pin |
| Connectors: | SMA Female |
| Size: | 1.25"Ø x 0.88" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +85 °C |
| Temperature (Non-Operating): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
