P7T-SUM-40-C-SFF Active
SP7T High Speed Switch with Commutation Features
Additional Documents

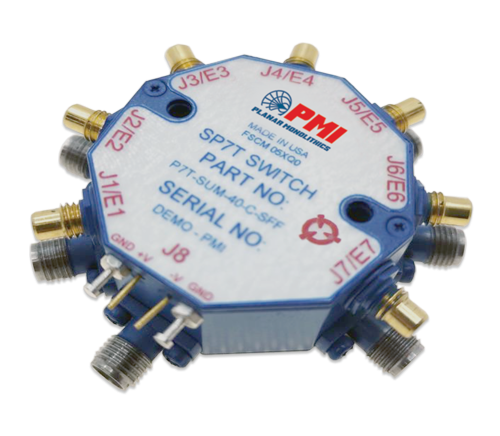

PMI Model P7T-SUM-40-C-SFF-X01 is a single pole seven throw high speed switch with commutation features including two arms on at once that operates over the 0.5 to 18 GHz frequency range with a frequency flatness of 0.75 dB over any 0.5 GHz segment and a insertion loss of 3.1 dB maximum. Housing measures 1.5"Ø x 0.7" with SMC connectors for control and SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Configuration: | SP7T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3.1 dB Max |
| Isolation (dB): | 40 dB Min |
| Switching Speed: | 20 MHz Max @ 50 ns PW up to 50% duty cycle (J1 - J5) 0.6 MHz Max (J6, J7) |
| Switching Speed - Typ: | 20 MHz Max @ 50 ns PW up to 50% duty cycle (J1 - J5) 0.6 MHz Max (J6, J7) |
| VSWR In/Out: | J1 - J4: ON: 2:1 Max, OFF: 2.1:1 J5: ON: 2:1 Max, OFF: 3.1 Max J6, J7: ON: 1.7:1 Max, OFF Reflective |
| Survival Power: | 15 dBm CW Max, 22 dBm with 1 µs PW 1% duty cycle (J1 - J5) 10 dBm Max (J6, J7) |
| Power & Control Connector: | SMC |
| Connectors: | SMA Female - removable |
| Size: | 1.5"Ø x 0.7" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -40 °C to +95 °C |
| Temperature (Non-Operating): | -54 °C to +95 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Shock: | MIL-STD-202F, METHOD 21B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
