| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Configuration: | SP8T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.1 to 20 |
|---|
| Frequency Min (GHz): | 0.1 |
|---|
| Frequency Max (GHz): | 20 |
|---|
| Insertion Loss (dB): | 5.75 dB Typ, 6 dB Max |
|---|
| Insertion Loss - Typ (dB): | 5.75 dB |
|---|
| Isolation (dB): | 60 dB Min |
|---|
| Isolation - Typ (dB): | 60 dB |
|---|
| Switching Speed: | 100 ns Max (50% TTL to 10%/90% RF) |
|---|
| Switching Speed - Typ: | 100 ns |
|---|
| VSWR In/Out: | 2.0:1 Max |
|---|
| Input Power (dBm): | 20 dBm Max |
|---|
| Survival Power: | 30 dBm (1 W) |
|---|
| Power Supply: | +5 VDC @ 500 mA Max,
-12 VDC @ 100 mA Max |
|---|
| Control Signal: | TTL Logic "0" = On "1" = Off |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female |
|---|

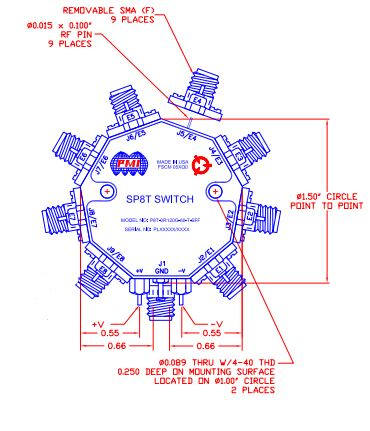

| Size: | Ø1.5" Circle Point to Point x 0.7" |
|---|
| Finish: | Painted Blue |
|---|
| Weight: | 2.5 oz Typ |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107G Cond A |
|---|
