Single Pole - Eight Throw Switches (SP8T)

Quantic PMI offers a variety of Single Pole - Eight Throw Switches (SP8T) designs which can include operating frequency ranges up to 70 GHz; connector options; reflective and absorptive configurations; excellent isolation; low insertion loss; high power capabilities; hermetic sealing; military or space screening; amplitude & phase matching and dual use components for surface mount or connectorized applications.

If you do not see exactly what you need, please click here, and send us your requirement(s) or questions so we can propose an instant solution.

Part NumberStatusReflective / AbsorptiveFrequency Min (GHz)Frequency Max (GHz)Insertion Loss (dB)Isolation (dB)Switching Speed
P8T-100M50G-90-T-RD-OPT218
Preliminary		PreliminaryAbsorptive0.1186 dB Typ, 7 dB Max (0.1 to 18 GHz)90 dB Typ, 70 dB Min (0.1 to 1 GHz),
90 dB Typ, 65 dB Min (1 to 18 GHz)		50 ns Max
P8T-100M50G-90-T-DEC-REC
Preliminary		PreliminaryAbsorptive0.1506 dB Typ, 7 dB Max (0.1 to 18 GHz),
9 dB Typ, 10.5 dB Max (18 to 40 GHz),
16 dB Typ, 17 dB Max (40 to 50 GHz)		90 dB Typ, 70 dB Min (0.1 to 1 GHz),
90 dB Typ, 60 dB Min (1 to 40 GHz),
80 dB Typ, 50 dB Min (40 to 50 GHz)		50 ns Max
P8T-812-80-515-T-RT-SFF-DIFF
Active		ActiveAbsorptive8124 dB Max (10.27 ± 1 GHz),
5 dB Max (8 to 12 GHz)		80 dB Min (10.27 ± 1 GHz),
70 dB Min (8 to 12 GHz)		50 ns Max (Measured from 50% Strobe)
P8T-8G10G-90-T-55-SFF-DEC
Preliminary		PreliminaryAbsorptive8104 dB Max, 3.5 dB Typ90 dB Min30 ns Max

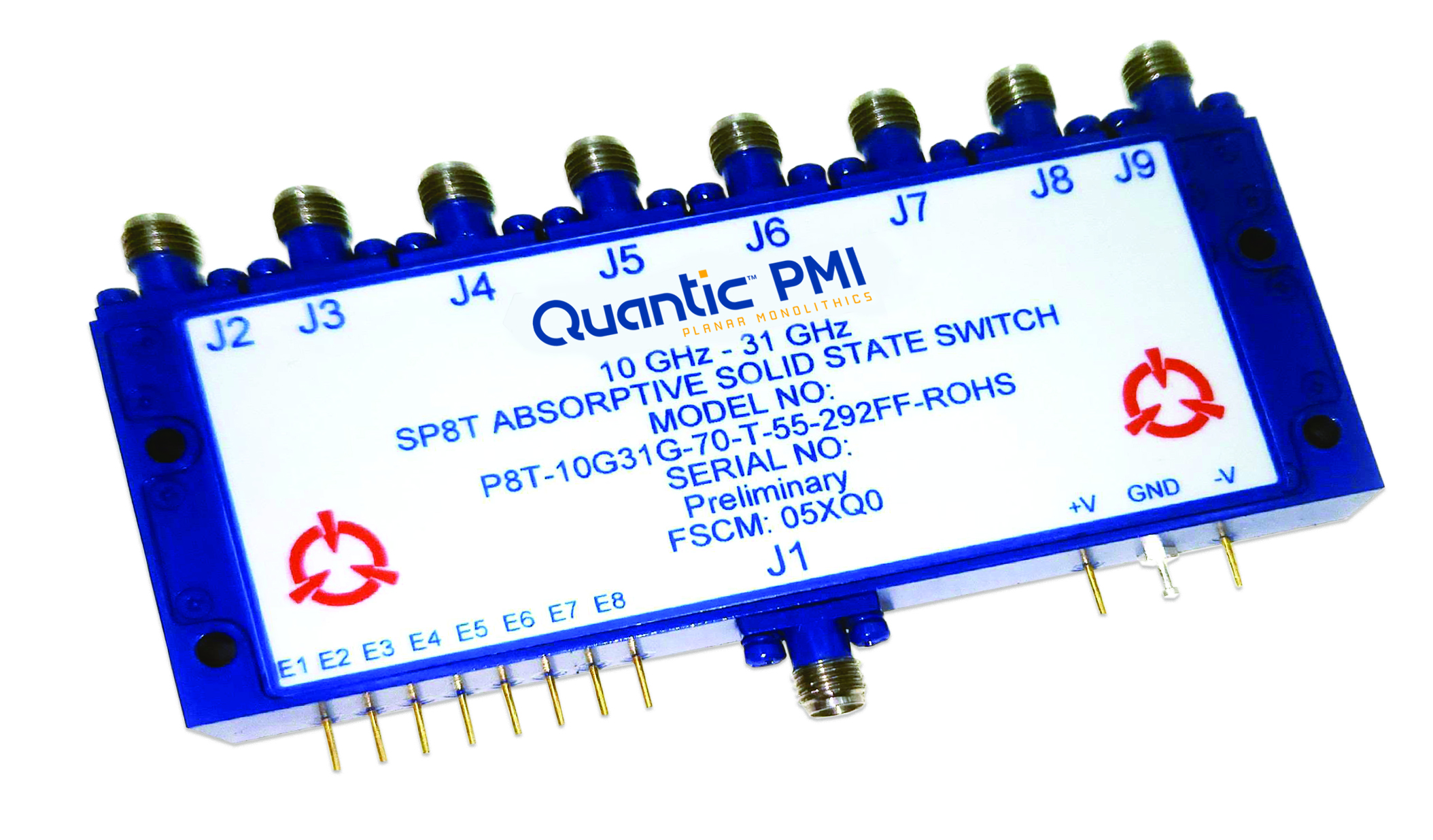

P8T-10G31G-70-T-55-292FF-ROHS
Active		ActiveAbsorptive10318 dB Max70 dB Min50 ns Typ
P8T-10G31G-90-T-55-292FF
Preliminary		PreliminaryAbsorptive10319 dB Max90 dB Min50 ns Typ
P8T-10G31G-70-T-55-292FF
Preliminary		PreliminaryAbsorptive10318 dB Max70 dB Min50 ns Typ
P8T-10G31G-80-T-55-292FF
Preliminary		PreliminaryAbsorptive10319 dB Max80 dB Min50 ns Typ
P8T-10G31G-60-T-55-292FF
Preliminary		PreliminaryAbsorptive10318 dB Max60 dB Min50 ns Typ
P8T-56G72G-30-5-5-T-185FF
Preliminary		PreliminaryAbsorptive56729.5 dB Max30 dB Max100 ns Max
P8T-24G43G-50-T-5-5-292FF
Preliminary		PreliminaryAbsorptive24437.5 dB Max50 dB Min100 ns Max
P8T-100M12D4G-1W-ENET-1U-NFF
Preliminary		PreliminaryReflective0.112.44.5 dB Max80 dB Min
-
P8T-0R5G18G-70-T-SFF-MICROD15
Preliminary		PreliminaryAbsorptive0.5184.5 dB Max60 dB Min (0.5 to 2 GHz),
70 dB Min (2 to 18 GHz)		75 ns Typ, 100 ns Max
P8T-100M40G-70-T-512-292FF-DEC
Preliminary		PreliminaryAbsorptive0.14011 dB Max,
6 dB Typ (0.1 to 18 GHz),
7 dB Typ (18 to 26.5 GHz),
10 dB Typ (26.5 to 40 GHz)		70 dB Min (0.1 to 40 GHz)100 ns Max
P8T-100M40G-95-T-512-292FF-DEC
Preliminary		PreliminaryAbsorptive0.14011 dB Max,
6 dB Typ (0.1 to 18 GHz),
7 dB Typ (18 to 26.5 GHz),
10 dB Typ (26.5 to 40 GHz)		90 dB Min (0.1 to 18 GHz),
80 dB Min. (>18 to 40 GHz)		100 ns Max
P8T-0R5G18G-60-T-SFF-BR-HERM
Preliminary		PreliminaryAbsorptive0.5184.5 dB Max60 dB Min100 ns Typ
P8T-6G8G-90-T-55-SFF-DEC
Preliminary		PreliminaryAbsorptive684 dB Max, 3.5 dB Typ90 dB Min30 ns Max
PEC-20M3G-8T-SFF-LV
Active		ActiveAbsorptive0.0232 dB Max (0.02 to 1 GHz),
2.5 dB Max (1 to 2 GHz),
4 dB Max (2 to 3 GHz)		70 dB Min (0.02 to 1 GHz),
60 dB Min (1 to 2 GHz),
50 dB Min (2 to 3 GHz)		Not Specified

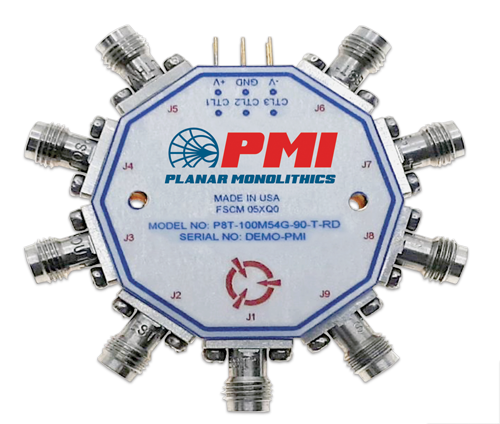

P8T-100M54G-90-T-RD
Active		ActiveAbsorptive0.1546 dB (0.1 to 18 GHz),
9 dB (18 to 40 GHz),
16 dB (40 to 50 GHz),
18 dB (50 to 54 GHz)		90 dB Typ (0.1 to 40 GHz),
80 dB Typ (40 to 50 GHz),
65 dB (50 to 54 GHz) Typ		50 ns Max
P8T-218-60-R-SFF-GR
Active		ActiveReflective2182.5 dB Max (2 to 6 dB GHz),
3 dB Max (6 to 12 GHz),
4 dB Max (12 to 18 GHz)		60 dB Min100 ns Max
P8T-500M18-60-R-SFF-GR
Active		ActiveReflective0.5182.5 dB Max (2 to 6 dB GHz),
3 dB Max (6 to 12 GHz),
4 dB Max (12 to 18 GHz)		60 dB Min100 ns Max
P8T-200M18-60-R-SFF-GR
Active		ActiveReflective0.2182.5 dB Max (0.2 to 6 GHz),
3 dB Max (6 to 12 GHz),
4 dB Max (12 to 18 GHz)		60 dB Min100 ns Max
P8T-200M18-60-T-SFF-NSI
Active		ActiveAbsorptive0.2182.5 dB Max (0.2 to 6 GHz),
3.5 dB Max (6 to 12 GHz),
4.5 dB Max (12 to 18 GHz)		60 dB Min100 ns Max
P8T-500M18-60-T-SFF-NSI
Active		ActiveAbsorptive0.5182.5 dB Max (0.5 to 6 GHz),
3.5 dB Max (6 to 12 GHz),
4.5 dB Max (12 to 18 GHz)		60 dB Min100 ns Max
P8T-8G18G-60-T-SFF-PM-ROHS
Preliminary		PreliminaryAbsorptive8186.5 dB Max60 dB Min50 to 120 ns Max (On/Off)
P-MSR-8DT-04T
Active		ActiveAbsorptive0.5184.5 dB60 dB (0.5 to 2 GHz),
70 dB (2 to 18 GHz)		10 ns Typ, 15 ns Max (Rise/Fall),
75 ns Typ, 100 ns Max (Delay On/Off)
P8T-0R5G18G-60-T-SFF-BR
Active		ActiveAbsorptive0.5184.5 dB Typ, 5 dB Max60 dB Min100 ns Typ
P8T-100M40G-85-T-512-292FF-OPT2640
Preliminary		PreliminaryAbsorptive264010 dB Max, 9.5 dB Typ70 dB Min100 ns Max
P8T-50M40G-85-T-512-292FF
Preliminary		PreliminaryAbsorptive0.054010 dB Max,
6 dB Typ (0.1 to 18 GHz),
7 dB Typ (18 to 26.5 GHz),
9.5 dB Typ (26.5 to 40 GHz)		80 dB Min (0.1 to 18 GHz),
70 dB Min (18 to 26.5 GHz),
60 dB Min (26.5 to 40 GHz)		100 ns Max
P8T-500M40G-60-T-55-292FF-OPT0R218
Preliminary		PreliminaryAbsorptive0.2185 dB Max70 dB Min100 ns Max
P8T-500M4G-70-T-515-SFF-23DBM-IND-MVG
Preliminary		PreliminaryAbsorptive0.542.5 dB Max70 dB Min100 ns Typ
P8T-100M40G-85-T-512-292FF-ROHS-OPT0R118
Active		ActiveAbsorptive0.1186 dB Max90 dB Min100 ns Max
P8T-2G18G-60-T-SFF-NSI
Active		ActiveAbsorptive2182.5 dB Max (2 to 6 GHz),
3.5 dB Max (6 to 12 GHz),
4.5 dB Max (12 to 18 GHz)		60 dB Min100 ns Max
P8T-30M6-70-T-SFF
Preliminary		PreliminaryAbsorptive0.0363.2 dB Max70 dB Min200 ns Max
P8T-0D418-75-T-SFF
Active		ActiveAbsorptive0.4183.4 dB Max (0.4 to 10 GHz),
5 dB Max (10 to 18 GHz)		75 dB Min
-
P8T-0R5G18G-60-MD15
Preliminary		PreliminaryAbsorptive1182 dB Max (1 to 4 GHz),
2.9 dB Max (4 to 8 GHz),
3.2 dB Max (8 to 12.4 GHz),
4.4 dB (12.4 to 18 GHz)		65 dB Min (1 to 4 GHz),
65 dB Min (4 to 8 GHz),
60 dB Min (8 to 12.4 GHz),
50 dB Min (12.4 to 18 GHz)		200 ns Max
P8T-0D418-75-T-SFF-NG
Active		ActiveAbsorptive0.4183.4 dB (0.4 to 10 GHz),
4.5 dB Max (10 to 18 GHz)		75 dB Min
-
P8T-0R518-70-T-SFF-MICROD
Active		ActiveAbsorptive0.5185 dB Max60 dB Min (0.5 to 2 GHz),
70 dB Min (2 to 18 GHz)		10 ns Typ, 15 ns Max (Rise/Fall),
75 ns Typ, 100 ns Max (Delay On/Off)
P8T-30M6G-60-515-T-SFF
Preliminary		PreliminaryAbsorptive0.0365 dB Max60 dB Min250 ns Max
P8T-100M40G-85-T-55-292FF-ROHS-MICROD
Preliminary		PreliminaryAbsorptive0.14010 dB Max90 dB Min (0.1 to 18 GHz),
70 dB Min (26.5 to 40 GHz)		100 ns Max
P8T-100M40G-85-T-55-292FF-DSUB
Preliminary		PreliminaryAbsorptive0.14010 dB Max,
6 dB Typ (0.1 to 18 GHz),
7 dB Typ (18 to 26.5 GHz),
9.5 dB Typ (26.5 to 40 GHz)		90 dB Min (0.1 to 18 GHz),
80 dB Min (18 to 26.5 GHz),
70 dB Min (26.5 to 40 GHz)		100 ns Max
P8T-12G18G-45-T-3B-GPOMM
Preliminary		PreliminaryAbsorptive12186 dB Max, 4.5 dB Typ45 dB Typ200 ns Max, 75 ns Typ
P8T-2G18G-50-T-512-SFF-MW
Preliminary		PreliminaryAbsorptive2186 dB Max50 dBc Min100 ns Max
P8T-2G18G-60-T-512-SFF
Preliminary		PreliminaryAbsorptive2184.5 dB Max70 dB Min100 ns Typ
P8T-2G18G-60-T-512-SMM
Preliminary		PreliminaryAbsorptive2184.5 dB Max70 dB Min100 ns Typ
P8T-2G18G-60-T-515-SMM
Active		ActiveAbsorptive2184.5 dB Max60 dB Min100 ns Typ
P8T-500M18G-60-T-515-SFF-2W
Preliminary		PreliminaryAbsorptive0.5186.5 dB Typ, 8 dB Max60 dB Min200 ns Max
P8T-500M18G-60-T-SFF-JW
Active		ActiveAbsorptive0.5184.5 dB Max60 dB Min100 ns Max
P8T-500M40G-50-T-55-292FF-OPT20G26R5G
Preliminary		PreliminaryAbsorptive2026.510 dB Typ45 dB Min50 ns Typ
P8T-500M6G-80-T-55-SFF
Preliminary		PreliminaryAbsorptive0.565 dB Max80 dB Min25 ns Typ, 30 ns Max
P8T-0R120G-60-T-SFF
Preliminary		PreliminaryAbsorptive0.1205.75 dB Typ, 6 dB Max60 dB Min100 ns Max (50% TTL to 10%/90% RF)
P8T-0R5G18G-60-T-SFF-PN-OPT8G11G
Preliminary		PreliminaryAbsorptive8114 dB Max55 dB Min100 ns Max
P8T-100M40G-85-T-512-292FF-ROHS-MICROD
Preliminary		PreliminaryAbsorptive0.14010 dB Max90 dB Min (0.1 to 18 GHz),
70 dB Min (26.5 to 40 GHz)		100 ns Max
P8T-1G8G-80-T-55-SFF
Preliminary		PreliminaryAbsorptive185 dB Max80 dB Min25 ns Typ, 30 ns Max
P8T-20M18G-80-R-515-SFF-SL
Preliminary		PreliminaryReflective0.02184 dB Typ,
4.5 dB Max		80 dB Min250 ns Typ
P8T-27G29G-50-T-55-292FF
Preliminary		PreliminaryAbsorptive272910 dB Typ45 dB Min50 ns Typ
P8T-2G6G-90-T-55-SFF
Active		ActiveAbsorptive263.5 dB Typ97 dB Typ, 90 dB Min30 ns Typ, 100 ns Max
P8T-2G6G-90-T-55-SFF-OPT4D5G5G-DEC
Preliminary		PreliminaryAbsorptive4.553.5 dB Max90 dB Min50 ns Max
P8T-37G39G-50-T-55-292FF
Preliminary		PreliminaryAbsorptive373910 dB Typ45 dB Min50 ns Typ
P8T-500M18G-60-T-515-SFF-2W-1
Preliminary		PreliminaryAbsorptive0.5186.5 dB Typ, 8 dB Max60 dB Min200 ns Max
P8T-8G12D4G-60-T-512-SFF
Preliminary		PreliminaryAbsorptive812.44 dB Typ60 dB Min500 ns
SWN-218-8DT-MP-IND-OPTF9180W
Preliminary		PreliminaryAbsorptive1182 dB (1 to 4 GHz),
2.9 dB (4 to 8 GHz),
3.2 dB (8 to 12.4 GHz),
4.4 dB (12.4 to 18 GHz)		65 dB (1 to 4 GHz),
65 dB (4 to 8 GHz),
60 dB (8 to 12.4 GHz),
55 dB (12.4 to 18 GHz)		200 ns
P8T-100M40G-85-T-512-292FF
Active		ActiveAbsorptive0.14010 dB Max,
6 dB Typ (0.1 to 18 GHz),
7 dB Typ (18 to 26.5 GHz),
9.5 dB Typ (26.5 to 40 GHz)		90 dB Min (0.1 to 18 GHz),
80 dB Min (18 to 26.5 GHz),
70 dB Min (26.5 to 40 GHz)		100 ns Max
P8T-100M40G-85-T-512-292FF-ROHS-MICROD-OPT0R118
Preliminary		PreliminaryAbsorptive0.11810 dB Max90 dB Min100 ns Max
P8T-20M18G-80-T-512-SFF-BG
Preliminary		PreliminaryAbsorptive0.02186.5 dB Max80 dB Min300 ns
P8T-33G38G-60-T-5-292FF
Preliminary		PreliminaryAbsorptive33388 dB Max60 dB Min50 ns Typ
P8T-20M18G-80-R-512-SFF-BG
Preliminary		PreliminaryReflective0.02185 dB Max80 dB Min300 ns Max
P8T-500M40G-50-T-55-292FF-1
Active		ActiveAbsorptive0.54010 dB Max50 dB Min50 ns Typ
P8T-0R5G18G-60-R-SFF-PN-OPT600M1600M
Active		ActiveReflective0.5184 dB Typ55 dB Min100 ns Max
P8T-0R5G18G-60-T-SFF-MD15
Preliminary		PreliminaryAbsorptive0.5184.5 dB Max60 dB Min100 ns Max
P8T-0R5G18G-60-T-SFF-OPT50M4G-BR
Active		ActiveAbsorptive0.0542.75 dB Max60 dB Min100 ns Typ
P8T-100M40G-85-T-512-SFF-ROHS-MICROD-OPT0R118
Preliminary		PreliminaryAbsorptive0.1186 dB Max,
5 dB Typ		90 dB Min100 ns Max
P8T-100M6G-80-T-SFF-JW
Active		ActiveAbsorptive0.164.5 dB Typ, 4.75 Max80 dB Typ, 70 dB Min150 ns Typ, 200 ns Max
P8T-0R5G18G-60-T-SFF
Active		ActiveAbsorptive0.5184.5 dB Max60 dB Min100 ns Max
P8T-0R518G-60-T-512-SFF-MSN
Preliminary		PreliminaryAbsorptive0.5184.5 dB60 dB10 ns Typ
10 ns Typ, 15 ns Max (Rise/Fall),
75 ns Typ, 100 ns Max (Delay On/Off)
P8T-0R518G-60-T-515-SFF-MSN
Active		ActiveAbsorptive0.5184.5 dB60 dB10 ns Typ
10 ns Typ, 15 ns Max (Rise/Fall),
75 ns Typ, 100 ns Max (Delay On/Off)
P8T-0R5G18G-60-R-SFF-PN*
Active		ActiveReflective0.5184 dB Typ55 dB Min100 ns Max
P8T-0R5G18G-70-T-SFF
Active		ActiveAbsorptive0.5184.5 dB Max60 dB Min (0.5 to 2 GHz),
70 dB Min (2 to 18 GHz)		100 ns Max
P8T-500M40G-50-R-55-292FF *
Active		ActiveReflective0.54010 dB Max60 dB Min50 ns Typ
P8T-100M40G-95-T-512-292FF-IND
Active		ActiveAbsorptive0.14011 dB Max,
6 dB Typ (0.1 to 18 GHz),
7 dB Typ (18 to 26.5 GHz),
10 dB Typ (26.5 to 40 GHz)		90 dB Min (0.1 to 18 GHz),
80 dB Min (>18 to 40 GHz)		100 ns
P8T-500M40G-50-T-55-292FF *
Active		ActiveAbsorptive0.54010 dB Typ45 dB Min50 ns Typ
P8T-100M40G-85-T-512-292FF-ROHS
Active		ActiveAbsorptive0.14010 dB Max, 6 dB Typ (0.1 to 18 GHz),
7 dB Typ (18 to 26.5 GHz),
9.5 dB Typ (26.5 to 40 GHz)		90 dB Min (0.1 to 18 GHz),
80 dB Min (18 to 26.5 GHz),
70 dB Min (26.5 to 40. GHz)		100 ns Max
P8T-500M40G-60-T-55-292FF
Active		ActiveAbsorptive0.54010 dB Max60 dB Min50 ns Typ
P8T-20M18G-80-R-512-SFF
Active		ActiveReflective0.12184 dB Typ, 4.5 dB Max80 dB Min250 ns Typ
P8T-0R5G18G-60-T-SFF-PN *
Active		ActiveAbsorptive0.5184.5 dB Max55 dB Min100 ns Max
PEC-20M3G-8T-SFGM-LV
Active		ActiveAbsorptive0.0232 dB (0.02 to 1 GHz),
2.5 dB (1 to 2 GHz),
4 dB (2 to 3 GHz)		70 dB Min (0.02 to 1 GHz),
60 dB Min (1 to 2 GHz),
50 dB Min (2 to 3 GHz)		Not Specified
P8T-100M50G-90-T-RD
Active		ActiveAbsorptive0.1506 dB Typ (0.1 to 18 GHz),
9 dB Typ (18 to 40 GHz),
16 dB Typ (40 to 50 GHz)		90 dB Typ (0.1 to 1 GHz),
90 dB Typ (1 to 40 GHz),
80 dB Typ (40 to 50 GHz)		50 ns Max
P8T-100M40G-95-T-512-292FF-IND-OPT100M20G
Active		ActiveAbsorptive0.1206.5 dB Max, 6.5 dB Typ (0.1 to 20 GHz)80 dB Min (0.1 to 20 GHz)100 ns Max
P8T-500M40G-50-T-55-SFF
Active		ActiveAbsorptive0.54010 dB Max50 dB Min50 ns Typ

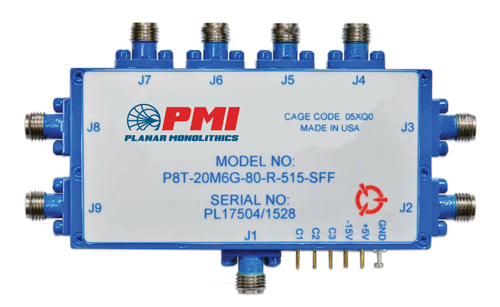

P8T-20M6G-80-R-515-SFF
Active		ActiveReflective0.0262.75 dB Typ, 3.25 dB Max80 dB Min, 100 dB Typ250 ns Typ
P8T-0R120G-110-T-512-SFF
Active		ActiveAbsorptive0.1206 dB Max110 dB Min500 ns Max, 300 ns Typ
