P8T-0R5G18G-60-T-SFF-PN-OPT8G11G Preliminary
High Speed SP8T Absorptive Switch

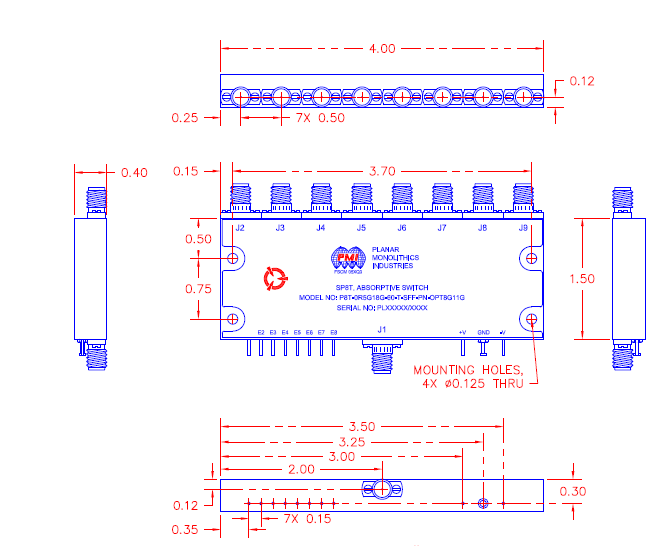

PMI Model P8T-0R5G18G-60-T-SFF-PN-OPT8G11G is a high speed, single pole, eight throw, absorptive switch capable of switching within 100 ns with a frequency range of 8 to 11 GHz and has over 55 dB of isolation. Housing is gold plated and measures 4.0" x 1.5" x 0.4" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Configuration: | SP8T |
| Reflective / Absorptive: | Absorptive |
| Frequency (GHz): | 8 to 11 |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 11 |
| Insertion Loss (dB): | 4 dB Max |
| Insertion Loss - Typ (dB): | 4 dB |
| Isolation (dB): | 55 dB Min |
| Isolation - Typ (dB): | 55 dB |
| Switching Speed: | 100 ns Max |
| VSWR In/Out: | 2.0:1 Max |
| Input Power (dBm): | 20 dBm CW |
| Control Signal: | 8-Bit TTL Logic |
| Power & Control Connector: | Solder Pins |
| Connectors: | SMA Female |
| Size: | 4.0" x 1.5" x 0.4" |
| Export Classification (ECCN): | EAR99 |
