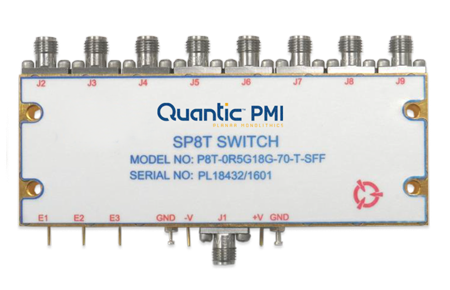

| General Parameters: |
|---|
| Status: | Active |
|---|
| Configuration: | SP8T |
|---|
| Reflective / Absorptive: | Absorptive |
|---|
| Frequency (GHz): | 0.5 to 18 |
|---|
| Frequency Min (GHz): | 0.5 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 4.5 dB Max |
|---|
| Insertion Loss - Typ (dB): | 3.9 dB |
|---|
| Isolation (dB): | 60 dB Min (0.5 to 2 GHz),
70 dB Min (2 to 18 GHz) |
|---|
| Isolation - Typ (dB): | 76 dB |
|---|
| Switching Speed: | 100 ns Max |
|---|
| Switching Speed - Typ: | 100 ns |
|---|
| VSWR In/Out: | 2.0:1 Max - Measured 2.0:1/1.9:1 |
|---|
| Input Power (dBm): | 20 dBm CW |
|---|
| Power Supply: | +5 VDC @ 400 mA - Measured 70 mA
-5 VDC @ 100 mA - Measured 20 mA |
|---|
| Control Signal: | Eight Line TTL |
|---|
| Power & Control Connector: | Solder Pins |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 4.0" x 1.5" x 0.4" |
|---|
| Finish: | Gold |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 ºC to +95 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202F, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
|---|
